Valves

Ball, gate, globe, check and needle valves and Y strainers, in stainless steel and brass, with threaded, socket weld, butt weld and flanged connections. Every valve below carries its design features, a dimension table with our part codes, and the full materials list — body, ball or disc, stem, seat, packing, gland and fasteners.

The range Ball valves Ball valves, flanged Check valves Gate & globe valves Strainers & needle valves Brass valves

Download the tables

Valves Tables

PDF · 4.9 MB · 31 pages

Design features, dimensions and materials, with part codes.

The range

Stainless & brass

Twenty-nine valve types, from a 1/4″ one-piece ball valve to an 8″ Class 150 flanged gate valve, with pressure ratings from 200 to 6000 WOG.

Stainless steel bodies are investment cast to ASTM A351 Gr. CF8M with ASTM A276 Gr. 316 stems; seats and packing are PTFE or molecularly enhanced PTFE. Brass valves are made to NPT threads with PTFE seats and gland packing.

Ball · gate · globe · check · needle · Y strainer
Threaded, socket weld, butt weld and flanged ends
200 to 6000 WOG; Class 150 and Class 300 flanged
ANSI B16.5, B16.10 and B16.34 where applicable; test standard API 598
ASTM A351 Gr. CF8M body, ASTM A276 Gr. 316 stem
Blow-out-proof stems, ISO 5211 actuator mounting on the FS range

Stainless steel and brass valves — ball, gate, globe and check.

How the tables read. Dimension letters follow each valve's own drawing on the original data sheet, given in both inches and millimetres. Cv is the flow coefficient and weights are in pounds. Brass valve dimensions are in millimetres throughout. Sizes shown are approximate and may vary.

Ball valves — threaded, socket weld and butt weld

800 – 6000 WOG

One, two and three piece bodies, full and reduced port, including two three-way valves.

1 PC Reduced Port 800 WOG Ball Valve, Threaded 1/4″ to 2″ — 8 sizes · 13-part materials list

Design features

Pressure rating: 800 PSI WOG (NON-SHOCK)
Steam rating: 125 PSI WSP
Investment cast body
Bottom-loaded, Blow-out-proof stem
Adjustable stem packing
Stainless Steel handle with vinyl grip
Locking device

Dimensions

Part code	Size		A		B		D		L		H		Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	Cv factor	Weight (lb)
13TBV1025	1/4″	8.0	0.20	5.0	2.36	60.0	0.67	17.0	1.54	39.0	1.22	31.0	1.0	0.17
13TBV10375	3/8″	10.0	0.28	7.0	2.76	70.0	0.83	21.0	1.73	44.0	1.38	35.0	2.5	0.24
13TBV105	1/2″	15.0	0.36	9.2	3.39	86.0	0.98	25.0	2.22	56.0	1.69	43.0	5.5	0.38
13TBV1075	3/4″	20.0	0.49	12.5	3.39	86.0	1.26	32.0	2.32	59.0	1.81	46.0	10.0	0.55
13TBV11	1″	25.0	0.63	16.0	4.09	104.0	1.50	38.0	2.80	71.0	1.97	50.0	15.5	0.99
13TBV1125	1 1/4″	32.0	0.79	20.0	4.09	104.0	1.93	49.0	3.11	79.0	2.13	54.0	20.0	1.63
13TBV115	1 1/2″	40.0	0.96	24.5	4.96	126.0	2.09	53.0	3.27	83.0	2.56	65.0	37.0	1.83
13TBV12	2″	50.0	1.26	32.0	4.96	126.0	2.56	65.0	3.94	100.0	2.83	72.0	60.0	2.76

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	1
3	Ball	ASTM A351 Gr. CF8M	1
4	Stem	ASTM A276 Gr. 316	1
5	Seat	PTFE	2
6	Thrust washer	PTFE	1
7	Gland packing	PTFE	1
8	Washer	SS304	2
9	Spring washer	SS304	1
10	Stem nut	SS304	1
11	Handle	SS304	1
12	Handle sleeve	Vinyl grip	1
13	Locking plate	SS304	1

Sizes shown are approximate and may vary.

2 PC Full Port 1000 WOG Ball Valve, Threaded 1/4″ to 4″ — 11 sizes · 14-part materials list

Design features

Blow-out-proof stem design
Steam Rating: 125 PSI WSP
Temperature range: -50°F to 450°F
Locking device
Threaded type: ANSI B1.20.1 (NPT)

Dimensions

Part code	Size		d		E		L		L1		H		S		D1		h	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	h	Cv factor	Weight (lb)
13TBV2025	1/4″	8.0	0.43	11.0	0.61	15.5	2.28	57.8	1.13	28.8	2.25	57.2	0.21	5.45	4.06	103.0	—	16	0.57
13TBV20375	3/8″	10.0	0.49	12.5	0.61	15.5	2.28	57.8	1.13	28.8	2.25	57.2	0.21	5.45	4.06	103.0	—	16	0.53
13TBV205	1/2″	15.0	0.59	15.0	0.57	14.5	2.43	61.7	1.21	30.7	2.33	59.1	0.21	5.45	4.06	103.0	—	26	0.66
13TBV2075	3/4″	20.0	0.79	20.0	0.83	21.0	2.76	70.1	1.38	35.0	2.46	62.6	0.21	5.45	4.06	103.0	—	55	0.93
13TBV21	1″	25.0	0.98	25.0	0.77	19.5	3.20	81.3	1.58	40.2	2.78	70.7	0.24	6.20	5.00	127.0	—	110	1.53
13TBV2125	1 1/4″	32.0	1.26	32.0	1.09	27.9	3.78	96.0	1.86	47.2	3.00	76.2	0.24	6.20	5.00	127.0	—	180	2.23
13TBV215	1 1/2″	40.0	1.50	38.0	1.50	27.5	4.43	112.5	2.19	55.6	3.51	89.1	0.37	9.40	6.02	153.0	—	270	4.10
13TBV22	2″	50.0	2.00	50.8	1.08	26.7	4.96	126.0	2.46	62.4	3.87	98.2	0.37	9.40	7.60	193.0	—	500	6.27
13TBV225	2 1/2″	65.0	2.56	65.0	1.02	26.0	6.63	168.5	3.35	85.0	4.35	110.6	0.37	9.40	7.60	193.0	M8 × P1.25	800	13.77
13TBV23	3″	80.0	3.15	80.0	1.50	38.0	7.54	191.4	3.78	95.9	4.88	124.0	0.47	12.00	10.98	279.0	M10 × P1.5	1150	22.03
13TBV24	4″	100.0	3.94	100.0	1.89	48.0	8.52	216.5	4.26	108.3	6.63	168.5	0.47	16.00	13.19	335.0	M10 × P1.5	2120	37.89

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	1
3	Ball	ASTM A351 Gr. CF8M	1
4	Stem	ASTM A276 Gr. 316	1
5	Seat	PTFE + 15%G/F	2
6	Gasket	PTFE	1
7	Thrust washer	PTFE	1
8	Packing	PTFE	1
9	Gland	SS304	1
10	Handle	SS304	1
11	Spring washer	SS304	1
12	Handle nut	SS304	1
13	Handle sleeve	Vinyl grip	1
14	Locking plate*	SS304	1

Sizes shown are approximate and may vary.

2 PC Full Port 2000/1500 WOG Ball Valve, Threaded 1/4″ to 2″ — 8 sizes · 14-part materials list

Design features

Working pressure: 1/4″~1″ 2000 PSI 1 1/4″~2″ 1500 PSI
Steam Rating: 150 PSI WSP
Investment casting body & cap
ME-PTFE seal kits — replace PTFE, RPTFE and FPA; low deformation under load, low permeation
Temperature rating: -45.5°C (-50°F) to 246°C (475°F)
Long cycle life
Adjustable stem packing
Blow-out-proof stem
Locking device
Design specification: ANSI B16.34 CLASS 900
Test standard: API 598
Option: Seal weld cap to body

Dimensions

Part code	Size		d		L		H	D1		W1		W2		h	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	in	mm	in	mm	in	mm	h	Cv factor	Weight (lb)
13TBVMM025	1/4″	8.0	0.43	11.0	2.34	59.5	2.24	4.06	103.0	0.50	12.7	1.12	28.5	M5 × P0.8	16	0.81
13TBVMM0375	3/8″	10.0	0.49	12.5	2.34	59.5	2.24	4.06	103.0	0.50	12.7	1.12	28.5	M5 × P0.8	16	0.79
13TBVMM05	1/2″	15.0	0.59	15.0	2.52	64.5	2.27	4.06	103.0	0.50	12.7	1.12	28.5	M5 × P0.8	26	0.93
13TBVMM075	3/4″	20.0	0.79	20.0	3.03	77.0	2.70	5.00	127.0	0.88	22.4	1.38	35.0	M6 × P1.0	55	1.76
13TBVMM1	1″	25.0	0.98	25.0	3.56	90.5	2.86	5.00	127.0	0.88	22.4	1.38	35.0	M6 × P1.0	110	2.73
13TBVMM125	1 1/4″	32.0	1.26	32.0	3.92	99.5	3.45	6.14	156.0	1.00	25.4	1.50	38.1	M6 × P1.0	180	4.52
13TBVMM15	1 1/2″	40.0	1.50	38.0	4.65	118.0	3.66	7.60	193.0	1.00	25.4	1.50	38.1	M6 × P1.0	270	5.68
13TBVMM2	2″	50.0	2.00	50.8	5.37	136.5	4.11	7.60	193.0	1.00	25.4	1.50	38.1	M6 × P1.0	500	9.76

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351Gr.CF8M	1
2	Cap	ASTM A351Gr.CF8M	1
3	Ball	ASTM A351Gr. CF8M	1
4	Stem	ASTM A276Gr. 316	1
5	Seat	ME-PTFE*	2
6	Gasket	ME-PTFE*	1
7	Thrust washer	ME-PTFE*	1
8	Packing	ME-PTFE*	1
9	Gland	SS304	1
10	Handle	SS304	1
11	Spring washer	SS304	1
12	Handle nut	SS304	1
13	Handle sleeve	Vinyl grip	1
14	Locking plate	SS304	1

ME-PTFE is molecularly enhanced PTFE. Sizes shown are approximate and may vary.

3 PC Full Port 1000 WOG Ball Valve, Threaded 1/4″ to 4″ — 11 sizes · 17-part materials list

Design features

Pressure rating: 1000 PSI WOG (NON-SHOCK)
Steam Rating: 150 PSI WSP
Investment cast body & cap
Blow-out-proof stem
Adjustable stem packing
Stainless Steel handle with vinyl grip
Locking device

Dimensions

Part code	Size		d		L		D1		H		W1		h	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	h	Cv factor	Weight (lb)
13TBV3025	1/4″	8.0	0.43	11.0	2.56	65.0	4.02	102.0	4.02	54.0	1.42	36.0	M5 × P0.8	6	1.06
13TBV30375	3/8″	10.0	0.49	12.5	2.56	65.0	4.02	102.0	4.02	54.0	1.42	36.0	M5 × P0.8	12	1.01
13TBV305	1/2″	15.0	0.59	15.0	2.80	71.0	4.02	102.0	4.02	55.0	1.42	36.0	M5 × P0.8	19	1.28
13TBV3075	3/4″	20.0	0.79	20.0	3.35	85.0	4.96	126.0	4.96	65.0	1.42	36.0	M5 × P0.8	37	2.02
13TBV31	1″	25.0	1.00	25.4	3.74	95.0	4.96	126.0	4.96	71.0	1.42	36.0	M5 × P0.8	64	2.62
13TBV3125	1 1/4″	32.0	1.26	32.0	4.37	111.0	5.91	150.0	5.91	89.0	1.97	50.0	M6 × P1.0	103	4.57
13TBV315	1 1/2″	40.0	1.57	40.0	4.76	121.0	5.91	150.0	5.91	94.0	1.97	50.0	M6 × P1.0	143	6.06
13TBV32	2″	50.0	2.00	50.8	5.51	140.0	7.32	186.0	7.32	100.0	1.97	50.0	M6 × P1.0	360	8.98
13TBV325	2 1/2″	65.0	2.56	65.0	6.81	173.0	10.71	272.0	10.71	121.0	2.76	70.0	M8 × P1.25	440	17.9
13TBV33	3″	80.0	3.15	80.0	7.56	192.0	10.71	272.0	10.71	134.0	4.02	102.0	M10 × P1.5	520	28.03
13TBV34	4″	100.0	3.94	100.0	8.86	225.0	13.19	335.0	13.19	172.0	4.02	102.0	M10 × P1.5	820	46.57

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	2
3	Ball	ASTM A351 Gr. CF8M	1
4	Stem	ASTM A276 Gr. 316	1
5	Seat	PTFE+15% G/F	2
6	Packing	PTFE	1
7	Gland	SS304	1
8	End seals	PTFE	2
9	Thrust washer	PTFE	1
10	Handle	SS304	1
11	Handle nut	SS304	1
12	Spring washer	SS304	1
13	Bolts	ASTM A193 Gr. B8	4-6
14	Bolt nuts	ASTM A194 Gr. 8	4-6
15	Bolt washers	SS304	4-6
16	Handle sleeve	Vinylgrip	1
17	Locking plate*	SS304	1

Sizes shown are approximate and may vary.

3 PC Full Port 1000 WOG Ball Valve, Socket weld 1/4″ to 4″ — 11 sizes · 17-part materials list

Design features

Pressure rating: 1000 PSI WOG (NON-SHOCK)
Steam Rating: 150 PSI WSP
Investment cast body & cap
Blow-out-proof stem
Adjustable stem packing
Stainless Steel handle with vinyl grip
Locking device

Dimensions

Part code	Size		a		d		D		D1	H	L		W1	h	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	in	in	in	mm	in	h	Cv factor	Weight (lb)
13WBV3025	1/4″	8.0	0.39	10.0	0.43	11.0	0.56	14.1	4.02	2.13	2.56	65.0	1.42	M5 × P0.8	6	1.06
13WBV30375	3/8″	10.0	0.39	10.0	0.49	12.5	0.69	17.5	4.02	2.13	2.56	65.0	1.42	M5 × P0.8	12	1.01
13WBV305	1/2″	15.0	0.39	10.0	0.59	15.0	0.85	21.7	4.02	2.24	2.80	71.0	1.42	M5 × P0.8	19	1.28
13WBV3075	3/4″	20.0	0.51	13.0	0.79	20.0	1.07	27.1	4.96	2.64	3.35	85.0	1.42	M5 × P0.8	37	2.02
13WBV31	1″	25.0	0.51	13.0	1.00	25.4	1.33	33.8	5.00	2.76	3.74	95.0	1.42	M5 × P0.8	64	2.62
13WBV3125	1 1/4″	32.0	0.51	13.0	1.26	32.0	1.67	42.5	6.14	3.59	4.41	111.0	1.97	M6 × P1.0	103	4.57
13WBV315	1 1/2″	40.0	0.51	13.0	1.57	40.0	1.91	48.6	6.14	3.74	4.84	121.0	1.97	M6 × P1.0	143	6.06
13WBV32	2″	50.0	0.63	16.0	2.00	50.8	2.41	61.1	7.52	4.02	5.55	141.0	1.97	M6 × P1.0	360	8.98
13WBV325	2 1/2″	65.0	0.63	16.0	2.56	65.0	2.91	73.8	10.71	4.76	6.81	173.0	2.76	M8 × P1.25	440	17.90
13WBV33	3″	80.0	0.63	16.0	3.15	80.0	3.54	89.8	10.98	5.08	7.56	192.0	4.02	M10 × P1.5	520	28.03
13WBV34	4″	100.0	0.75	19.0	3.94	100.0	4.55	115.5	13.19	6.84	8.86	225.0	4.02	M10 × P1.5	820	46.57

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	2
3	Ball	ASTM A351 Gr. CF8M	1
4	Stem	ASTM A276 Gr. 316	1
5	Seat	PTFE+15%G/F	2
6	Packing	PTFE	1
7	Gland	SS304	1
8	End seals	PTFE	2
9	Thrust washer	PTFE	1
10	Handle	SS304	1
11	Handle nut	SS304	1
12	Spring washer	SS304	1
13	Bolts	ASTM A193 Gr. B8	4-6
14	Bolt nuts	ASTM A194 Gr. 8	4-6
15	Bolt washer	SS304	4-6
16	Handle sleeve	Vinylgrip	1
17	Locking plate	SS304	1

Sizes shown are approximate and may vary.

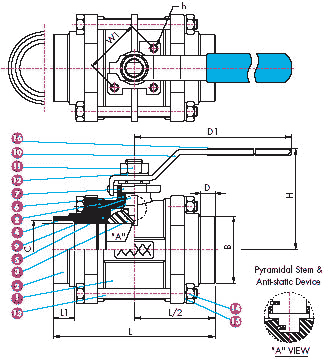

3 PC Full Port 1000 WOG Ball Valve, Butt weld 1/4″ to 4″ — 11 sizes · 16-part materials list

Design features

Pressure rating: 1000 PSI WOG (NON-SHOCK)
Steam Rating: 150 PSI WSP
Investment cast body & cap
Anti-static blow-out-proof stem
Adjustable stem packing
Stainless Steel handle with vinyl grip

Dimensions

Size		B		C		D		L		L1		H	D1		W1		h	Cv factor	Weight (lb)
in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	in	mm	in	mm	h	Cv factor	Weight (lb)
1/4″	8.0	—	—	—	—	—	—	2.56	65.0	—	—	4.02	4.02	102.0	1.42	36.0	M5 × P0.8	6	1.06
3/8″	10.0	—	—	—	—	—	—	2.56	65.0	—	—	4.02	4.02	102.0	1.42	36.0	M5 × P0.8	12	1.01
1/2″	15.0	0.67	17.0	0.55	14.0	0.24	6.0	2.80	71.0	0.35	9.0	4.02	4.02	102.0	1.42	36.0	M5 × P0.8	19	1.28
3/4″	20.0	0.94	24.0	0.83	21.0	0.24	6.0	3.35	85.0	0.35	9.0	4.96	4.96	126.0	1.42	36.0	M5 × P0.8	37	2.02
1″	25.0	1.18	30.0	1.06	27.0	0.28	7.0	3.74	95.0	0.41	10.5	4.96	4.96	126.0	1.42	36.0	M5 × P0.8	64	2.62
1 1/4″	32.0	1.46	37.0	1.34	34.0	0.28	7.0	4.41	112.0	0.41	10.5	5.91	5.91	150.0	1.97	50.0	M6 × P1.0	103	4.57
1 1/2″	40.0	1.73	44.0	1.61	41.0	0.31	8.0	4.84	123.0	0.47	12.0	5.91	5.91	150.0	1.97	50.0	M6 × P1.0	143	6.06
2″	50.0	2.20	56.0	2.09	53.0	0.31	8.0	5.55	141.0	0.47	12.0	7.32	7.32	186.0	1.97	50.0	M6 × P1.0	360	8.98
2 1/2″	65.0	3.00	76.1	2.84	72.1	0.31	8.0	6.81	173.0	0.47	12.0	10.71	10.71	272.0	2.76	70.0	M8 × P1.25	440	17.9
3″	80.0	3.50	89.0	3.35	85.0	0.31	8.0	7.56	192.0	0.47	12.0	10.71	10.71	272.0	4.02	102.0	M10 × P1.5	520	28.03
4″	100.0	4.25	108.0	4.09	104.0	0.31	8.0	8.86	225.0	0.47	12.0	13.19	13.19	335.0	4.02	102.0	M10 × P1.5	820	46.57

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	2
3	Ball	ASTM A351 Gr. CF8M	1
4	Stem	ASTM A276Gr. 316	1
5	Seat	PTFE	2
6	Packing	Grafoil	1
7	Gland	SS304	1
8	Gasket	Grafoil	2
9	Thrust washer	PTFE	1
10	Handle	SS304	1
11	Handle nut	SS304	1
12	Spring washer	SS304	1
13	Bolts	ASTM A193 Gr. B8	4-6
14	Bolt nuts	ASTM A194 Gr. 8	4-6
15	Bolt washers	SS304	4-6
16	Handle sleeve	Vinyl grip	1

Sizes shown are approximate and may vary.

3 PC Full Port 1500/2000 WOG Ball Valve, Threaded 1/2″ to 2″ — 6 sizes · 16-part materials list

Design features

Working pressure: 1/2″~1″ 2000 PSI 1 1/4″~2″ 1500 PSI
Steam Rating: 150 PSI WSP
ME-PTFE seal kits — replace PTFE, RPTFE and FPA; low deformation under load, low permeation
Temperature rating: -45.5°C (-50°F) to 246°C (475°F)
Long cycle life
Blow-out-proof stem
Anti-static device
Adjustable stem packing
Handle with locking device
With ISO5211 direct mounting of actuators
End connections: Threaded end Socket-weld end
ANSI B16.34 full compliance
Test standard: API 598
API 607 approval pending

Dimensions

Size		A	C	D	d		L		H1		h		S	T	Cv factor	Weight (lb)
in	mm	in	in	in	in	mm	in	mm	in	mm	in	mm	in	in	Cv factor	Weight (lb)
1/2″	15.0	0.39	1.15	0.85	0.59	15.0	2.89	73.5	1.66	42.1	0.35	9.0	0.35	0.35	26	1.72
3/4″	20.0	0.51	1.44	1.07	0.79	20.0	3.26	83.0	1.83	46.5	0.35	9.0	0.35	0.35	55	2.16
1″	25.0	0.51	1.81	1.33	1.00	25.4	3.90	99.0	2.32	59.0	0.45	11.5	0.43	0.35	110	3.15
1 1/4″	32.0	0.51	2.04	1.68	1.26	32.0	4.48	114.0	2.46	62.5	0.45	11.5	0.43	0.35	180	4.78
1 1/2″	40.0	0.51	2.33	1.92	1.57	40.0	5.03	128.0	3.11	79.0	0.63	16.0	0.55	0.51	270	7.22
2″	50.0	0.63	2.86	2.41	2.00	50.8	5.98	152.0	3.42	86.9	0.63	16.0	0.55	0.51	500	14.23

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	2
3	Ball	ASTM A351 Gr. CF8M	1
4	Seat	ME-PTFE*	2
5	Bolt	ASTM A193 Gr. B8	8
6	Gasket	ME-PTFE*	2
7	Thrust washer	ME-PTFE*	1
8	Stem	ASTM A276 Gr. 316	1
9	Packing	ME-PTFE*	1
10	Ring	SS304	1
11	Compression washer	SS410	2
12	Handle nut	SS304	2
13	Stopper	SS304	1
14	Locking plate	SS304	1
15	Handle	SS304	1
16	Handle sleeve	Vinyl grip	1

ME-PTFE is molecularly enhanced PTFE. Sizes shown are approximate and may vary.

3 PC Reduced Port 6000 WOG Ball Valve, Threaded 1/8″ to 1″ — 6 sizes · 14-part materials list

Design features

Pressure rating: 6000 PSI WOG
Full material traceability valves 100% tested
Bottom-loaded, blow-out-proof stem
Stainless Steel handle with vinyl grip

Dimensions

Part code	Size		A		B		C	D		E		Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	C	in	mm	in	mm	Cv factor	Weight (lb)
13TBV6M0125	1/8″	6.0	3.33	84.6	0.39	10.0	1/8″ NPT	1.06	26.8	1.50	38.0	—	0.99
13TBV6M025	1/4″	8.0	3.33	84.6	0.39	10.0	1/4″ NPT	1.06	26.8	1.50	38.0	1.0	0.95
13TBV6M0375	3/8″	10.0	3.33	84.6	0.39	10.0	3/8″ NPT	1.06	26.8	1.50	38.0	2.5	0.91
13TBV6M05	1/2″	15.0	3.33	84.6	0.39	10.0	1/2″ NPT	1.06	26.8	1.50	38.0	5.5	0.88
13TBV6M075	3/4″	20.0	3.74	95.0	0.51	13.0	3/4″ NPT	1.26	32.0	1.57	40.0	10.0	1.89
13TBV6M1	1″	25.0	4.57	116.0	0.75	19.0	1 ″ NPT	1.61	41.0	2.36	60.0	15.5	3.3

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A182 F316	1
2	Cap	ASTM A182 F316	2
3	Ball	ASTM A351 CF8M	1
4	Stem	ASTM A276 Gr. 316	1
5	Ball seats	PTFE+50%S.S.	2
6	Stem packing	PTFE+50%S.S.	1
7	Stem ring	SS304	1
8	Gasket	PTFE+50%S.S.	2
9	Thrust washer	PTFE+50%S.S.	1
10	Handle	SS304	1
11	Handle nut	SS304	1
12	Handle washer	SS304	1
13	Handle sleeve	Vinyl grip	1
14	Pin	SS304	1

Sizes shown are approximate and may vary.

3 Way Reduced Port 1000 WOG Ball Valve, Threaded “L” Port 1/4″ to 2″ — 8 sizes · 17-part materials list

Design features

″L″ Port
Pressure rating: 1000 PSI WOG (NON-SHOCK)
Steam Rating: 150 PSI WSP
Investment cast body & cap
Bottom-loaded, Blow-out-proof stem
Adjustable stem packing
Stainless Steel handle with vinyl grip
Locking device

Dimension drawing, 3 Way Reduced Port 1000 WOG Ball Valve, Threaded — Lettered dimensions and numbered parts refer to the tables below.

Dimensions

Part code	Size		d		L		H	D	E		F		M		N	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	in	in	mm	in	mm	in	mm	N	Cv factor	Weight (lb)
13TBVL025	1/4″	8.0	0.43	11.0	2.68	68.0	2.28	4.17	1.17	29.7	1.34	34.0	1.65	42.0	M5 × P0.8	6.0	1.32
13TBVL0375	3/8″	10.0	0.43	11.0	2.68	68.0	2.28	4.17	1.17	29.7	1.34	34.0	1.65	42.0	M5 × P0.8	6.0	1.32
13TBVL05	1/2″	15.0	0.50	12.7	2.95	75.0	2.40	5.43	1.17	29.7	1.48	37.5	1.65	42.0	M5 × P0.8	12.0	1.47
13TBVL075	3/4″	20.0	0.63	16.0	3.39	86.0	2.91	5.43	1.39	35.4	1.69	43.0	1.97	50.0	M6 × P1.0	15.5	2.62
13TBVL1	1″	25.0	0.79	20.0	4.06	103.0	3.19	6.38	1.39	35.4	2.03	51.5	1.97	50.0	M6 × P1.0	20.0	3.75
13TBVL125	1 1/4″	32.0	0.98	25.0	4.53	115.0	3.46	6.38	1.39	35.4	2.26	57.5	1.97	50.0	M6 × P1.0	37.0	5.27
13TBVL15	1 1/2″	40.0	1.26	32.0	4.92	125.0	4.09	8.66	1.95	49.5	2.46	62.5	2.76	70.0	M8 × P1.25	103.0	7.50
13TBVL2	2″	50.0	1.50	38.1	5.75	146.0	4.33	8.66	1.95	49.5	2.87	73.0	2.76	70.0	M8 × P1.25	143.0	12.13

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	CAP2	ASTM A351 Gr. CF8M	2
3	Stem	ASTM A276 Gr. 316	1
4	Gland nut	SS304	1
5	Ball	ASTM A351 Gr. CF8M	1
6	Seat	PTFE+15%G/F	4
7	Thrust washer	PTFE	1
8	Packings	PTFE	1
9	JOINT GASKET1	PTFE	2
10	Stem bolt	SS304	1
11	Washer	SS304	1
12	Handle	SS304	1
13	Stem washer	SS304	1
14	Locating lock*	SS304	1
15	Handle sleeve	Vinyl grip	1
16	Joint gasket	PTFE	1
17	CAP1	ASTM A351 Gr. CF8M	1

Sizes shown are approximate and may vary.

3 Way Reduced Port 1000 WOG Ball Valve, Threaded “T” Port 1/4″ to 2″ — 8 sizes · 18-part materials list

Design features

″T″ Port
Pressure rating: 1000 PSI WOG (NON-SHOCK)
Steam Rating: 150 PSI WSP
Investment cast body & cap
Bottom-loaded, Blow-out-proof stem
Adjustable stem packing
Actuator mounting pad
Stainless Steel handle with vinyl grip
Locking device

Dimensions

Part code	Size		D		L		H	D	E		F		M		N	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	in	in	mm	in	mm	in	mm	N	Cv factor	Weight (lb)
13TBVT025	1/4″	8.0	0.43	11.0	2.68	68.0	2.28	4.17	1.17	29.7	1.34	34.0	1.65	42.0	M5 × P0.8	6.0	1.32
13TBVT0375	3/8″	10.0	0.43	11.0	2.68	68.0	2.28	4.17	1.17	29.7	1.34	34.0	1.65	42.0	M5 × P0.8	6.0	1.32
13TBVT05	1/2″	15.0	0.50	12.7	2.95	75.0	2.40	5.43	1.17	29.7	1.48	37.5	1.65	42.0	M5 × P0.8	12.0	1.47
13TBVT075	3/4″	20.0	0.63	16.0	3.39	86.0	2.91	5.43	1.39	35.4	1.69	43.0	1.97	50.0	M6 × P1.0	15.5	2.62
13TBVT1	1″	25.0	0.79	20.0	4.06	103.0	3.19	6.38	1.39	35.4	2.03	51.5	1.97	50.0	M6 × P1.0	20.0	3.75
13TBVT125	1 1/4″	32.0	0.98	25.0	4.53	115.0	3.46	6.38	1.39	35.4	2.26	57.5	1.97	50.0	M6 × P1.0	37.0	5.27
13TBVT15	1 1/2″	40.0	1.26	32.0	4.92	125.0	4.09	8.66	1.95	49.5	2.46	62.5	2.76	70.0	M8 × P1.25	103.0	7.50
13TBVT2	2″	50.0	1.50	38.1	5.75	146.0	4.33	8.66	1.95	49.5	2.87	73.0	2.76	70.0	M8 × P1.25	143.0	12.13

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	CAP2	ASTM A351 Gr. CF8M	2
3	Stem	ASTM A276 Gr. 316	1
4	Gland nut	SS304	1
5	Ball	ASTM A351 Gr. CF8M	1
6	Seat	PTFE+15%G/F	4
7	Thrust washer	PTFE	1
8	Packings	PTFE	1
9	JOINT GASKET1	PTFE	2
10	Stem bolt	SS304	1
11	Washer	SS304	1
12	Handle	SS304	1
13	Stem washer	SS304	1
14	Set screw	SS304	1
15	Handle sleeve	Vinyl grip	1
16	Set bolt	SS304	1
17	Joint gasket	PTFE	1
18	CAP1	ASTM A351 Gr. CF8M	1

Sizes shown are approximate and may vary.

Ball valves — flanged

Class 150 & 300

Face to face to ANSI B16.10, flange dimensions to ANSI B16.5, wall thickness to ANSI B16.34.

1 PC Class 150 Regular Port Ball Valve, Flanged 1″ to 6″ — 7 sizes · 13-part materials list

Design features

1 PC 150# Regular Port
ISO 5211 actuator mounting pad
Blow-out-proof stem design
Anti-static device
Adjustable stem packing
Locking device
Body: ASTM A351 Gr.CF8M for TC-6000
ME-PTFE seal kits — replace PTFE, RPTFE and FPA; low deformation under load, low permeation
Temperature rating: -45.5°C (-50°F) to 246°C (475°F)
Long cycle life
ANSI B16.5, B16.10 and B16.34 full compliance
Test standard : API 598

Dimensions

Part code	Size		A	B	E	d		G	H	K	T	M	N	P	S	L	H1	h	Cv factor	Weight (lb)
Part code	in	mm	in	in	in	in	mm	in	in	in	in	in	N	in	in	in	in	h	Cv factor	Weight (lb)
13FVAI1	1″	25.0	0.79	5.0	0.98	0.98	25.0	0.06	3.12	4.25	0.44	0.62	4	1.65	0.43	5.18	2.95	M5 × P0.8	52	5.07
13FVAI15	1 1/2″	40.0	1.26	6.5	1.24	1.57	40.0	0.06	3.88	5.00	0.56	0.62	4	1.97	0.55	6.42	3.81	M6 × P1.0	120	9.92
13FVAI2	2″	50.0	1.50	7.0	1.65	1.97	50.0	0.06	4.75	6.00	0.62	0.75	4	2.76	0.67	9.13	4.96	M8 × P1.25	170	15.66
13FVAI25	2 1/2″	65.0	1.97	7.5	1.65	2.64	67.0	0.06	5.50	7.00	0.69	0.75	4	2.76	0.67	9.13	5.32	M8 × P1.25	255	24.00
13FVAI3	3″	80.0	2.56	8.0	2.20	3.15	80.0	0.06	6.00	7.50	0.75	0.75	4	4.02	0.87	12.87	5.98	M10 × P1.5	430	31.31
13FVAI4	4″	100.0	3.15	9.0	2.20	3.94	100.0	0.06	7.50	9.00	0.94	0.75	8	4.02	0.87	12.87	6.30	M10 × P1.5	565	52.00
13FVAI6	6″	150.0	3.94	10.5	2.20	5.91	150.0	0.06	9.50	11.00	1.00	0.88	8	4.02	0.87	12.87	7.01	M10 × P1.5	600	78.06

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr CF8M	1
2	Cap	ASTM A351 Gr CF8M	1
3	Ball	ASTM A351 Gr. CF8M	1
4	Stem	ASTM A276 Gr. 316	1
5	Seat	ME-PTFE*	2
6	Gasket	ME-PTFE*	1
7	Thrust washer	ME-PTFE*	1
8	Packing	ME-PTFE*	1
9	Gland	ASTM A351 Gr. CF8	1
10	Stopper	SS304	1
11	Snap ring	SS304	2
12	Gland bolt	ASTM A193 Gr. B8	2
13	Handle	ASTM A536 Gr.65, 45& 12	1

ME-PTFE is molecularly enhanced PTFE. Sizes shown are approximate and may vary.

2 PC Class 150 Full Port Ball Valve, Flanged 1/2″ to 8″ — 12 sizes · 15-part materials list

Design features

2 PC 150# Full Port
Face to face: ANSI B16.10
Flange dimension: ANSI B16.5
Wall thickness: ANSI B16.34
Test standard: API 598
Option: Anti-static

Dimensions

Part code	Size		A		B		F	G	H	K	T	M	N	D	H1	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	in	in	in	in	in	N	in	in	Cv factor	Weight (lb)
13FV205	1/2″	15.0	0.59	15.0	4.25	107.9	1.38	0.06	2.38	3.50	0.44	0.62	4	5.12	2.9	19	4.41
13FV2075	3/4″	20.0	0.79	20.0	4.62	117.3	1.69	0.06	2.75	3.88	0.44	0.62	4	5.12	3.0	37	5.51
13FV21	1″	25.0	0.98	25.0	5.00	127.0	2.00	0.06	3.12	4.25	0.44	0.62	4	6.46	3.7	54	6.62
13FV2125	1 1/4″	32.0	1.26	32.0	5.50	139.7	2.50	0.06	3.50	4.62	0.50	0.62	4	6.46	3.9	103	9.5
13FV215	1 1/2″	40.0	1.50	38.0	6.50	165.1	2.88	0.06	3.88	5.00	0.56	0.62	4	8.07	4.7	143	13.5
13FV22	2″	50.0	1.97	50.0	7.00	177.8	3.62	0.06	4.75	6.00	0.62	0.75	4	8.07	5.2	360	18.74
13FV225	2 1/2″	65.0	2.56	65.0	7.50	190.5	4.12	0.06	5.50	7.00	0.69	0.75	4	8.07	5.3	440	28.67
13FV23	3″	80.0	3.15	80.0	8.00	203.2	5.00	0.06	6.00	7.50	0.75	0.75	4	12.83	6.1	520	39.69
13FV24	4″	100.0	3.94	100.0	9.00	228.6	6.19	0.06	7.50	9.00	0.94	0.75	8	12.83	6.9	820	61.74
13FV25	5″	125.0	4.92	125.0	14.00	355.6	7.31	0.06	8.50	10.00	0.94	0.88	8	42.20	9.4	1500	—
13FV26	6″	150.0	5.91	150.0	15.50	393.7	8.50	0.06	9.50	11.00	1.00	0.88	8	42.20	9.8	1920	165.38
13FV28	8″	200.0	7.87	200.0	18.00	457.2	10.62	0.06	11.75	13.50	1.12	0.88	8	42.52	11.7	3600	286.65

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	1
3	Ball	ASTM A351 Gr. CF8M	1
4	Stem	ASTM A276 Gr. 316	1
5	Seat	PTFE	2
6	Gasket	PTFE	1
7	Thrust washer	PTFE	1
8	Packing	PTFE	1
9	Gland	ASTM A351 Gr. CF8	1
10	Stopper	SS304	1
11	Snap ring	SS304	2
12	Gland bolt	ASTM A193Gr. B8	2
13	Stud bolt	ASTM A193 Gr. B8	4-12
14	Set nut	ASTM A194 Gr. 8M	4-12
15	Handle	ASTM A536 Gr. 65, 45 & 12	1

Sizes shown are approximate and may vary.

2 PC Class 300 Full Port Ball Valve, Flanged 1/2″ to 8″ — 12 sizes · 15-part materials list

Design features

2 PC 300# Full Port
Face to face: ANSI B16.10
Flange dimension: ANSI B16.5
Wall thickness: ANSI B16.34
Test standard: API 598
Option: Anti-static

Dimensions

Part code	Size		A		B		F	G	H	K	T	M	N	D	H1	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	in	in	in	in	in	N	in	in	Cv factor	Weight (lb)
13FVB205	1/2″	15.0	0.59	15.0	5.50	139.7	1.38	0.06	2.62	3.75	0.56	0.62	4	5.12	2.90	19	5.58
13FVB2075	3/4″	20.0	0.79	20.0	6.00	152.4	1.69	0.06	3.25	4.62	0.62	0.75	4	5.12	3.00	37	7.72
13FVB21	1″	25.0	0.98	25.0	6.50	165.1	2.00	0.06	3.50	4.88	0.69	0.75	4	6.46	3.70	54	10.1
13FVB2125	1 1/4″	32.0	1.26	32.0	7.00	177.8	2.50	0.06	3.88	5.25	0.75	0.75	4	6.46	3.90	103	13.58
13FVB215	1 1/2″	40.0	1.50	38.1	7.50	190.5	2.88	0.06	4.50	6.12	0.81	0.88	4	8.07	4.70	143	20.95
13FVB22	2″	50.0	1.97	50.0	8.50	215.9	3.62	0.06	5.00	6.50	0.88	0.75	8	8.07	5.20	360	24.92
13FVB225	2 1/2″	65.0	2.56	65.0	9.50	241.3	4.12	0.06	5.88	7.50	1.00	0.88	8	8.07	5.30	440	41.45
13FVB23	3″	80.0	3.15	80.0	11.12	282.4	5.00	0.06	6.62	8.25	1.12	0.88	8	12.83	6.10	520	58.65
13FVB24	4″	100.0	3.94	100.0	12.00	304.8	6.19	0.06	7.88	10.00	1.25	0.88	8	12.83	6.90	820	91.29
13FVB25	5″	125.0	4.92	125.0	15.00	381.0	7.31	0.06	9.25	11.00	1.38	0.88	8	42.20	9.40	1500	—
13FVB26	6″	150.0	5.91	150.0	15.88	403.3	8.50	0.06	10.62	12.50	1.44	0.88	12	42.20	9.80	1920	202.86
13FVB28	8″	200.0	7.87	200.0	19.75	501.6	10.62	0.06	13.00	15.00	1.62	1.00	12	42.52	11.73	3600	384.33

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	1
3	Ball	ASTM A351 Gr. CF8M	1
4	Stem	ASTM A276 Gr. 316	1
5	Seat	PTFE+15%G/F	2
6	Gasket	PTFE	1
7	Thrust washer	PTFE	1
8	Packing	PTFE	1
9	Gland	ASTM A351 Gr. CF8	1
10	Stopper	SS304	1
11	Snap ring	SS304	2
12	Gland bolt	ASTM A193Gr. B8	2
13	Stud bolt	ASTM A193 Gr. B8	4-12
14	Set nut	ASTM A194 Gr. 8M	4-12
15	Handle	ASTM A536 Gr. 65, 45 & 12	1

Sizes shown are approximate and may vary.

2 PC Class 150 Full Port “FS” Ball Valve, Flanged 1/2″ to 6″ — 10 sizes · 16-part materials list

Design features

2 PC 150# Full Port ″FS″
Steam rating: 150 PSI WSP
ISO 5211 actuator mounting pad
Blow-out-proof stem design
Anti-static device
Adjustable stem packing
Locking device
Body: ASTM A351 Gr. CF8M (TC-5000) or ASTM A216 Gr. WCB (TC-5100)
ME-PTFE seal kits — replace PTFE, RPTFE and FPA; low deformation under load, low permeation
Temperature rating: -45.5°C (-50°F) to 246°C (475°F)
Long cycle life
ANSI B16.5, B16.10 and B16.34 full compliance
Test standard: API 598
API 607 approval

Dimensions

Size		A	B	F	G	H	K	T	M	N	P		L	H1	h	Cv factor	Weight (lb)
in	mm	in	in	in	in	in	in	in	in	N	in	mm	in	in	h	Cv factor	Weight (lb)
1/2″	15.0	0.59	4.25	1.38	0.06	2.38	3.50	0.44	0.62	4	1.65	42.0	5.18	2.91	M5 × P0.8	26	4.41
3/4″	20.0	0.79	4.62	1.69	0.06	2.75	3.88	0.44	0.62	4	1.65	42.0	5.18	2.94	M5 × P0.8	55	5.51
1″	25.0	0.98	5.00	2.00	0.06	3.12	4.25	0.44	0.62	4	1.97	50.0	6.42	3.44	M6 × P1.0	110	6.62
1 1/4″	32.0	1.26	5.50	2.50	0.06	3.50	4.62	0.50	0.62	4	1.97	50.0	6.42	3.63	M6 × P1.0	180	9.92
1 1/2″	40.0	1.50	6.50	2.88	0.06	3.88	5.00	0.56	0.62	4	2.76	70.0	9.13	4.76	M8 × P1.25	270	13.23
2″	50.0	1.97	7.00	3.62	0.06	4.75	6.00	0.62	0.75	4	2.76	70.0	9.13	5.08	M8 × P1.25	500	18.74
2 1/2″	65.0	2.56	7.50	4.12	0.06	5.50	7.00	0.69	0.75	4	2.76	70.0	9.13	5.55	M8 × P1.25	800	28.67
3″	80.0	3.15	8.00	5.00	0.06	6.00	7.50	0.75	0.75	4	4.02	102.0	12.87	6.52	M10 × P1.5	1150	39.69
4″	100.0	3.94	9.00	6.19	0.06	7.50	9.00	0.94	0.75	8	4.02	102.0	12.87	7.11	M10 × P1.5	2120	61.74
6″	150.0	5.91	15.50	8.50	0.06	9.50	11.00	1.00	0.88	8	4.92	125.0	42.26	9.95	M12 × P1.75	5100	165.38

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	1
3	Ball	ASTM A351 Gr. CF8M	1
4	Stem	ASTM A276Gr. 316	1
5	Seat	ME-PTFE*	2
6	Gasket	Spiral-wound gasket	1
7	Thrust washer	ME-PTFE*	1
8	Packing	ME-PTFE*	1
9	Gland	ASTM A351 Gr. CF8	1
10	Stopper	SS304	1
11	Snap ring	SS304	2
12	Gland bolt	ASTM A193 Gr. B8	2
13	Stud bolt	ASTM A193 Gr. B8	4~10
14	Set nut	ASTM A194 Gr. 8	4~10
15	Handle	SS304	1
16	Locking plate	SS304	1

ME-PTFE is molecularly enhanced PTFE. Sizes shown are approximate and may vary.

Check valves

Swing · Y · flanged

Full Port 200 WOG Swing Check Valve, Threaded 1/4″ to 3″ — 10 sizes · 6-part materials list

Design features

Pressure rating: 200 PSI WOG (NON-SHOCK)
Steam Rating: 150 PSI WSP
Investment cast body & cap
Screwed cap
Swing type disc FULL PORT

Dimensions

Part code	Size		A		L		H		Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	Cv factor	Weight (lb)
13TCV025	1/4″	8.0	0.39	10.0	2.56	65.0	1.77	45.0	—	0.73
13TCV0375	3/8″	10.0	0.47	12.0	2.56	65.0	1.77	45.0	4	0.68
13TCV05	1/2″	15.0	0.59	15.0	2.60	66.0	1.81	46.0	6.5	0.64
13TCV075	3/4″	20.0	0.79	20.0	3.19	81.0	2.13	54.0	15	1.08
13TCV1	1″	25.0	0.98	25.0	3.58	91.0	2.36	60.0	28	1.52
13TCV125	1 1/4″	32.0	1.26	32.0	4.19	106.5	2.83	72.0	45	2.32
13TCV15	1 1/2″	40.0	1.57	40.0	4.76	121.0	2.95	75.0	65	3.48
13TCV2	2″	50.0	1.97	50.0	5.59	142.0	3.23	82.0	120	5.16
13TCV25	2 1/2″	65.0	2.56	65.0	6.26	159.0	3.54	90.0	180	8.38
13TCV3	3″	80.0	3.15	80.0	7.48	190.0	4.09	104.0	280	13.01

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	1
3	Disc	ASTM A351 Gr. CF8M	1
4	Hinge pin	SS316	1
5	Gasket	PTFE	1
6	Plug	SS316	1

Sizes shown are approximate and may vary.

800 WOG Y-Check Valve, Threaded, Socket weld 1/4″ to 3″ — 10 sizes · 8-part materials list

Design features

Investment cast body & cap
Screwed-in cap
Connecting threads: ANSI B2.1/BS21

Dimensions

Part code	Size		A		B		C		Cv factor	Weight (lb)	Cracking pressure
Part code	in	mm	in	mm	in	mm	in	mm	Cv factor	Weight (lb)	Cracking pressure
13TYC025	1/4″	8.0	2.56	65.0	1.81	46.0	0.75	19.0	2	0.62	0.435
13TYC0375	3/8″	10.0	2.56	65.0	1.81	46.0	0.75	19.0	3.8	0.54	0.435
13TYC05	1/2″	15.0	2.56	65.0	1.81	46.0	0.75	19.0	6.3	0.71	0.435
13TYC075	3/4″	20.0	3.15	80.0	2.28	58.0	0.91	23.0	14	0.95	0.464
13TYC1	1″	25.0	3.54	90.0	2.72	69.0	1.06	27.0	27	1.62	0.464
13TYC125	1 1/4″	32.0	4.13	105.0	2.95	75.0	1.26	32.0	43	2.15	0.508
13TYC15	1 1/2″	40.0	4.72	120.0	3.35	85.0	1.61	41.0	64	3.15	0.508
13TYC2	2″	50.0	5.51	140.0	3.86	98.0	1.97	50.0	116	4.85	0.580
13TYC25	2 1/2″	65.0	6.69	170.0	4.62	117.0	2.56	65.0	185	9.75	0.653
13TYC3	3″	80.0	7.87	200.0	5.35	136.0	3.15	80.0	270	14.35	—

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Cap	ASTM A351 Gr. CF8M	1
3	Spring	SS304	1
4	Disc	SS316	1
5	Seat	Teflon	1
6	Washer	SS304	1
7	Bolt	SS304	1
8	Gasket packing	Teflon	1

Sizes shown are approximate and may vary.

Class 150 Flange End Swing Check Valve 1/2″ to 12″ — 13 sizes · 9-part materials list

Design features

Swing type
Body: ASTM A351 Gr. CF8M
Disc: ASTM A351 Gr. CF8M
End Type: Flange end
Face to Face: ANSI B16.10
Flange Dimensions: ANSI B16.5 Class 150
Wall thickness: ANSI B16.34

Dimensions

Part code	Size		L		H1		K		H	F		T		M	N	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	in	in	mm	in	mm	in	N	Cv factor	Weight (lb)
13FCV05	1/2″	15.0	4.25	108.0	2.87	73.0	3.50	89.0	2.38	1.38	35.0	0.44	11.1	0.62	4	9.5	5.05
13FCV075	3/4″	20.0	4.61	117.0	2.95	75.0	3.86	98.0	2.76	1.69	43.0	0.44	11.1	0.62	4	16	6.24
13FCV1	1	25.0	5.00	127.0	3.15	80.0	4.25	108.0	3.13	2.01	51.0	0.44	11.4	0.62	4	27	8.47
13FCV15	1 1/2″	40.0	6.50	165.0	4.37	111.0	5.00	127.0	3.88	2.87	73.0	0.56	14.3	0.62	4	70	10.23
13FCV2	2″	50.0	7.99	203.0	4.84	123.0	5.98	152.0	4.74	3.62	92.0	0.63	15.9	0.75	4	120	13.36
13FCV25	2 1/2″	65.0	8.50	216.0	5.28	134.0	7.01	178.0	5.49	4.13	105.0	0.69	17.5	0.75	4	170	27.10
13FCV3	3″	80.0	9.49	241.0	5.83	148.0	7.48	190.0	6.00	5.00	127.0	0.75	19.1	0.75	4	250	48.36
13FCV4	4″	100.0	11.50	292.0	6.22	158.0	9.02	229.0	7.50	6.18	157.0	0.94	23.9	0.75	8	470	72.81
13FCV5	5″	125.0	12.99	330.0	7.56	192.0	10.00	254.0	8.50	7.32	186.0	0.94	23.9	0.88	8	—	92.61
13FCV6	6″	150.0	14.02	356.0	8.78	223.0	10.98	279.0	9.51	8.50	216.0	1.00	25.4	0.88	8	1100	136.71
13FCV8	8″	200.0	19.49	495.0	11.14	283.0	13.50	343.0	11.75	10.63	270.0	1.13	28.6	0.88	8	2000	233.73
13FCV10	10″	250.0	24.49	622.0	12.52	318.0	15.98	406.0	14.25	12.76	324.0	1.19	30.2	1.00	12	—	359.42
13FCV12	12″	300.0	27.48	698.0	14.06	357.0	19.02	483.0	17.01	15.00	381.0	1.25	31.8	1.00	12	—	551.25

Materials list

No.	Part name	Material (SS316)	Qty
1	Body	ASTM A351 Gr.CF8M	1
2	Cover	ASTM A351 Gr.CF8M	1
3	Disc	ASTM A351 Gr.CF8M	1
4	Disc nut	ASTM A194 Gr. 8	1
5	Cover bolt	ASTM A193 Gr. B8	4-12
6	Cover nut	ASTM A194 Gr. 8	4-12
7	Arm	ASTM A351Gr.CF8M	1
8	Gasket	PTFE	1
9	Plug	SS316	1

Sizes shown are approximate and may vary.

Gate and globe valves

Threaded & flanged

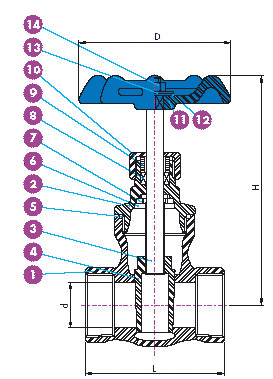

Full Port 200 WOG Gate Valve, Threaded 1/2″ to 2″ — 6 sizes · 14-part materials list

Design features

Pressure rating: 200 PSI WOG (NON-SHOCK)
Investment cast body & bonnet
Non-rising stem
Solid wedge disc FULL PORT

Dimensions

Part code	Size		d		L		H		D		Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	in	mm	Cv factor	Weight (lb)
13TGAV05	1/2″	15	0.63	16.1	2.24	57.0	3.88	98.6	2.76	70.0	15	0.93
13TGAV075	3/4″	20	0.80	20.3	2.38	60.5	4.06	103.0	2.76	70.0	37	1.24
13TGAV1	1″	25	1.02	26.0	2.64	67.0	4.53	115.0	3.01	76.5	72	1.61
13TGAV125	1 1/4″	32	1.25	31.8	2.99	76.0	5.04	128.0	3.01	76.5	110	2.14
13TGAV15	1 1/2″	40	1.57	40.0	3.43	87.0	6.81	173.0	4.07	103.5	165	2.96
13TGAV2	2″	50	1.98	50.3	3.74	95.0	7.44	121.0	4.76	121.0	320	4.26

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Bonnet	ASTM A351 Gr. CF8M	1
3	Stem	ASTM A276 Gr. 316	1
4	Disc	ASTM A351 Gr. CF8M	1
5	Gasket	PTFE	1
6	Stop ring	SS304	1
7	Stem holder	SS316	1
8	Stem packing	PTFE	1
9	Gland	SS304	1
10	Gland nut	SS316	1
11	Handlewheel	SS400	1
12	Name plate	Aluminum	1
13	Handlewheel washer	SS304	1
14	Handlewheel nut	SS304	1

Sizes shown are approximate and may vary.

Class 150 Flange End Gate Valve 1/2″ to 12″ — 13 sizes · 11-part materials list

Design features

Rising stem
Body: ASTM A351 Gr. CF8M
Disc: ASTM A351 Gr. CF8M
Stem: SS16
End Type: Flange end
Face to Face: ANSI B16.10
Flange Dimensions: ANSI B16.5 150 lbs
Wall thickness: ANSI B16.34

Dimensions

Part code	Size		L		H1		K		H	F		T		M	N	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	in	in	mm	in	mm	in	N	Cv factor	Weight (lb)
13FGAV05	1/2″	15.0	4.25	108.0	8.03	204.0	3.94	100.0	2.38	1.38	35.0	0.44	11.1	0.62	4	19	7.28
13FGAV075	3/4″	20.0	4.61	117.0	8.23	209.0	3.94	100.0	2.76	1.69	43.0	0.44	11.1	0.62	4	36	9.70
13FGAV1	1	25.0	5.00	127.0	9.02	229.0	3.94	100.0	3.13	2.01	51.0	0.44	11.1	0.62	4	57	11.31
13FGAV15	1 1/2″	40.0	6.50	165.0	11.14	283.0	5.51	140.0	3.88	2.87	73.0	0.56	14.3	0.62	4	140	17.09
13FGAV2	2″	50.0	7.01	178.0	13.07	332.0	6.30	160.0	4.74	3.62	92.0	0.63	15.9	0.75	4	240	25.09
13FGAV25	2 1/2″	65.0	7.48	190.0	15.63	397.0	7.09	180.0	5.49	4.13	105.0	0.69	17.5	0.75	4	360	46.31
13FGAV3	3″	80.0	7.99	203.0	17.28	439.0	7.87	200.0	6.00	5.00	127.0	0.75	19.1	0.75	4	580	56.56
13FGAV4	4″	100.0	9.02	229.0	20.39	518.0	8.82	224.0	7.50	6.18	157.0	0.94	23.9	0.75	8	950	82.42
13FGAV5	5″	125.0	10.00	254.0	24.45	621.0	9.84	250.0	8.52	7.32	186.0	0.94	23.9	0.88	8	NA	110.25
13FGAV6	6″	150.0	10.51	267.0	28.11	714.0	11.02	280.0	9.51	8.50	216.0	1.00	25.4	0.88	8	2400	119.07
13FGAV8	8″	200.0	11.50	292.0	35.98	914.0	11.81	300.0	11.75	10.63	270.0	1.13	28.6	0.88	8	4200	198.45
13FGAV10	10″	250.0	12.99	330.0	43.62	1108.0	13.98	355.0	14.25	12.76	324.0	1.19	30.2	1.00	12	6800	343.98
13FGAV12	12″	300.0	14.02	356.0	61.14	1553.0	23.62	600.0	17.01	15.00	381.0	1.25	31.8	1.00	12	9900	534.71

Materials list

No.	Part name	Material (SS316)	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Bonnet	ASTM A351Gr.CF8M	1
3	Stem	ASTM A276Gr. 316	1
4	Disc	ASTM A351 Gr. CF8M	1
5	Gland	ASTM A351 Gr. CF8	1
6	Gland packing	PTFE	1
7	Hand wheel	ASTM A536 Gr. B65, 45 & 12	1
8	Gasket	PTFE (OR NON ASBESTOS)	1
9	Bonnet bolt/nut	ASTM A193 Gr. B8/ASTM A194 Gr. 8	4-16
10	Gland bolt/nut	ASTM A193 Gr. B8/ASTM A194 Gr. 8	2
11	Yoke sleeve	Bronze (or ductileni-resist)	1

Sizes shown are approximate and may vary.

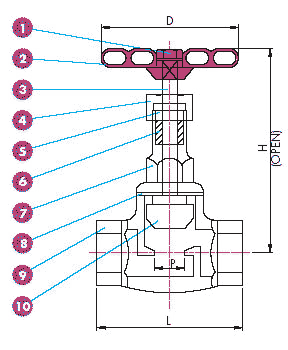

Full Port 200 WOG Globe Valve, Threaded 1/4″ to 2″ — 8 sizes · 10-part materials list

Design features

Pressure rating: 200 PSI WOG (NON-SHOCK)
Investment cast body & bonnet
Screwed bonnet
Rising stem and wheel FULL PORT

Dimensions

Part code	Size		P		L		H (open)		D		Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	in	mm	Cv factor	Weight (lb)
13TGLV025	1/4″	8.0	0.39	10.0	2.05	52.0	4.02	102.0	2.36	60.0	1.0	1.04
13TGLV0375	3/8″	10.0	0.47	12.0	2.05	52.0	4.02	102.0	2.36	60.0	1.5	1.01
13TGLV05	1/2″	15.0	0.47	12.0	2.60	66.0	3.74	95.0	2.76	70.0	2.5	1.46
13TGLV075	3/4″	20.0	0.59	15.0	2.70	68.5	3.90	99.0	2.76	70.0	5.6	1.46
13TGLV1	1″	25.0	0.79	20.0	3.08	78.3	4.02	102.0	3.01	76.5	10.5	2.10
13TGLV125	1 1/4″	32.0	0.98	25.0	3.39	86.0	4.96	126.0	4.07	103.5	17.0	3.11
13TGLV15	1 1/2″	40.0	1.30	33.0	3.86	98.0	5.35	136.0	4.07	103.5	25.0	4.83
13TGLV2	2″	50.0	1.57	40.0	4.35	110.5	6.14	156.0	4.76	121.0	46.0	6.09

Materials list

No.	Part name	Material	Qty
1	Nut	SS304	1
2	Handwheel	SS400	1
3	Stem	ASTM A276 Gr. 316	1
4	Gland nut	ASTM A351 Gr. CF8M	1
5	Gland	ASTM A351 Gr. CF8M	1
6	Gland packing	PTFE	1
7	Bonnet	ASTM A351 Gr. CF8M	1
8	Gasket	PTFE	1
9	Body	ASTM A351 Gr. CF8M	1
10	Disc	ASTM A351 Gr. CF8M	1

Sizes shown are approximate and may vary.

Class 150 Flange End Globe Valve 1/2″ to 10″ — 12 sizes · 11-part materials list

Design features

Rising stem
O.S. & Yoke, Flexible Wedge
Body: ASTM A351 Gr. CF8M
Disc: ASTM A351 Gr. CF8M
Stem: SS316
Packing: PTFE
End Type: Flange end
Face to Face: ANSI B16.10
Flange Dimensions: ANSI B16.5 150 lbs
Wall thickness: ANSI B16.34

Dimensions

Part code	Size		L		H1		K		H	F		T		M	N	Cv factor	Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	in	in	mm	in	mm	in	N	Cv factor	Weight (lb)
13FGLV05	1/2″	15.0	4.25	108.0	6.77	172.0	3.94	100.0	2.38	1.38	35.0	0.44	11.1	0.62	4	5	7.67
13FGLV075	3/4″	20.0	4.61	117.0	6.77	172.0	3.94	100.0	2.76	1.69	43.0	0.44	11.1	0.62	4	8.5	9.31
13FGLV1	1	25.0	5.00	127.0	6.89	175.0	3.94	100.0	3.13	2.01	51.0	0.44	11.1	0.62	4	11	11.66
13FGLV15	1 1/2″	40.0	6.50	165.0	8.15	207.0	5.51	140.0	3.88	2.87	73.0	0.56	14.3	0.62	4	32	18.43
13FGLV2	2″	50.0	7.99	203.0	9.13	232.0	6.30	160.0	4.74	3.62	92.0	0.63	15.9	0.75	4	48	28.44
13FGLV25	2 1/2″	65.0	8.50	216.0	10.75	273.0	7.09	180.0	5.49	4.13	105.0	0.69	17.5	0.75	4	80	44.10
13FGLV3	3″	80.0	9.49	241.0	11.93	303.0	7.87	200.0	6.00	5.00	127.0	0.75	19.1	0.75	4	110	56.91
13FGLV4	4″	100.0	9.02	229.0	13.39	340.0	8.82	224.0	7.50	6.18	157.0	0.94	23.9	0.75	8	190	87.16
13FGLV5	5″	125.0	14.02	356.0	15.16	385.0	9.84	250.0	8.50	7.32	186.0	0.94	23.9	0.88	8	—	117.97
13FGLV6	6″	150.0	15.98	406.0	17.64	448.0	11.81	300.0	9.51	8.50	216.0	1.00	25.4	0.88	8	450	154.35
13FGLV8	8″	200.0	19.49	495.0	21.46	545.0	13.98	355.0	11.75	10.63	270.0	1.13	28.6	0.88	8	800	294.37
13FGLV10	10″	250.0	24.49	622.0	26.22	666.0	17.72	450.0	14.25	12.76	324.0	1.19	30.2	1.00	12	—	433.28

Materials list

No.	Part name	Material (SS316)	Qty
1	Body	ASTM A351 Gr.CF8M	1
2	Bonnet	ASTM A351 Gr.CF8M	1
3	Stem	ASTM A276 Gr.316	1
4	Disc	ASTM A351 Gr.CF8M	1
5	Gland	ASTM A351 Gr. CF8	1
6	Gland packing	PTFE	1
7	Hand wheel	ASTM A536 Gr. B65, 45 & 12	1
8	Gasket	PTFE (OR NON ASBESTOS)	1
9	Bonnet bolt/nut	ASTM A193 Gr. B8/ASTM A194 Gr. 8	4-16
10	Gland bolt/nut	ASTM A193 Gr. B8/ASTM A194 Gr. 8	2
11	Yoke sleeve	Bronze (or ductileni-resist)	1

Sizes shown are approximate and may vary.

Strainers and needle valves

300 & 6000 WOG

300 WOG Y Strainer Valve, Threaded, Socket weld 1/4″ to 3″ — 10 sizes · 4-part materials list

Design features

300 WOG
Investment cast body & cap
SS316 screen. 4 mm thick perforated, 1.0 mm hole with 2.0 mm staggering
Screwed-in cap
Connecting threads: ANSI B2.1/BS21

Dimensions

Part code	Size		d		B		H		L		Weight
Part code	in	mm	in	mm	in	mm	in	mm	in	mm	kg	lb
13TYS025	1/4″	8.0	0.31	8.0	1.02	26.0	2.01	51.0	2.56	65.0	0.26	0.57
13TYS0375	3/8″	10.0	0.39	10.0	1.02	26.0	2.01	51.0	2.56	65.0	0.23	0.50
13TYS05	1/2″	15.0	0.59	15.0	1.02	26.0	2.01	51.0	2.56	65.0	0.30	0.66
13TYS075	3/4″	20.0	0.79	20.0	1.30	33.0	2.36	60.0	3.15	80.0	0.40	0.88
13TYS1	1″	25.0	0.98	25.0	1.61	41.0	2.83	72.0	3.54	90.0	0.70	1.54
13TYS125	1 1/4″	32.0	1.26	32.0	1.93	49.0	3.03	77.0	4.13	105.0	0.90	1.99
13TYS15	1 1/2″	40.0	1.57	40.0	2.20	56.0	3.43	87.0	4.72	120.0	1.30	2.87
13TYS2	2″	50.0	1.97	50.0	2.72	69.0	4.06	103.0	5.51	140.0	2.10	4.63
13TYS25	2 1/2″	65.0	2.56	65.0	3.43	87.0	4.72	120.0	6.69	170.0	4.30	9.47
13TYS3	3″	80.0	3.15	80.0	4.02	102.0	5.51	140.0	7.87	200.0	6.30	13.88

Materials list

No.	Part name	Material	Qty
1	Body	ASTM A351 Gr. CF8M	1
2	Screen	SS316 SCREEN	1
3	Gasket	Teflon	1
4	Cap	ASTM A351 Gr. CF8M	1

Sizes shown are approximate and may vary.

6000 PSI Stainless Steel Needle Valve 1/8″ to 1″ — 6 sizes · 8-part materials list

Design features

Investment casting
Screwed-in bonnet
Rising stem
T handle operation
Connecting threads ANSI B2.1, BS21 and DIN
Working pressure: 6000 lb/IN² 6000 PSI

Dimensions

Part code	Size		A		B		C		Weight (lb)
Part code	in	mm	in	mm	in	mm	in	mm	Weight (lb)
13TNV0125	1/8″	6.0	2.95	75.0	1.15	29.0	2.28	58.0	0.65
13TNV025	1/4″	8.0	2.95	75.0	1.15	29.0	2.28	58.0	0.61
13TNV0375	3/8″	10.0	2.95	75.0	1.15	29.0	2.28	58.0	0.73
13TNV05	1/2″	15.0	3.45	87.0	1.28	32.5	2.56	65.0	1.22
13TNV075	3/4″	20.0	3.55	90.0	1.38	35.0	2.76	70.0	1.44
13TNV1	1″	25.0	4.05	103.0	1.58	40.0	3.15	80.0	3.09

Materials list

No.	Part name	Specification	Qty
1	Set screw	SS304	1
2	Handle	SS410	1
3	Stem	SS316	1
4	Gland nut	SS304	1
5	Gland	SS304	1
6	Packing	Teflon	1
7	Bonnet	ASTM A351 Gr. CF8M	1
8	Body	ASTM A351 Gr. CF8M	1

Sizes shown are approximate and may vary.

Brass valves

NPT · solder

Brass bodies with PTFE seats and gland packing, NPT threaded or solder end, rated PN16 to 600 WOG for service between −10 °C and 110 °C.

Brass ball valve 1/4″ to 4″ — 11 sizes · 10-part materials list

Dimensions

Size	H	W	F	L	D	T	PN
1/4″	44	80	10	42.3	9	NPT 1/4	600 WOG
3/8″	45	80	10	42.3	10	NPT 3/8	600 WOG
1/2″	47.5	90	11.5	49	14.5	NPT 1/2	600 WOG
3/4″	54	105	13.5	58.5	19	NPT 3/4	600 WOG
1″	58	105	15	67	24	NPT 1	600 WOG
1 1/4″	69	120	16.5	78	30	NPT 1 1/4	600 WOG
1 1/2″	78.5	135	18	91	37	NPT 1 1/2	600 WOG
2″	91.5	160	20	105.5	47	NPT 2	600 WOG
2 1/2″	106.5	220	30	143.5	60	NPT 2 1/2	400 WOG
3″	126.5	265	31.8	161.5	75	NPT 3	400 WOG
4″	151	265	35.8	192.5	94	NPT 4	400 WOG

Materials list

No.	Part name	Material
1	Body	Brass
2	Body cap	Brass
3	Ball	Brass
4	Ball seats	PTFE
5	Stem	Brass
6	Gland packing	PTFE
7	Gland	Brass
8	Lever	Coated steel
9	Screw	A107
10	Washer	A107

Dimensions in millimetres. T is the connection thread; PN is the pressure rating. Temperature range −10 °C to 110 °C.

Brass solder ball valve 1/2″ to 2″ — 6 sizes · 10-part materials list

Dimensions

Size	H	W	F	L	D	T	PN
1/2″	47.5	80	14	57.5	14.5	16	600 WOG
3/4″	54	105	18	67	19	22	600 WOG
1″	58	105	20	76.4	24	28	600 WOG
1 1/4″	69	120	27	100.5	30	35	600 WOG
1 1/2″	78.5	135	28	112	38	41	600 WOG
2″	91.5	160	32	132	48	54	600 WOG

Materials list

No.	Part name	Material
1	Body	Brass
2	Body cap	Brass
3	Ball	Brass
4	Ball seats	PTFE
5	Stem	Brass
6	Gland packing	PTFE
7	Gland	Brass
8	Lever	Coated steel
9	Screw	A107
10	Washer	A107

Dimensions in millimetres. T is the connection thread (solder socket diameter); PN is the pressure rating. Temperature range −10 °C to 110 °C.

Brass gate valve 1/2″ to 4″ — 9 sizes · 11-part materials list

Dimensions

Size	H	W	F	L	D	T	PN
1/2″	72	53	11.5	40	12.5	NPT 1/2	PN20
3/4″	82.5	57.5	13	45	19	NPT 3/4	PN20
1″	95.5	57.5	15	51	24	NPT 1	PN20
1 1/4″	111	72	16	57	30	NPT 1 1/4	PN20
1 1/2″	120	78	17	60	37	NPT 1 1/2	PN20
2″	98	88.5	18	72	47	NPT 2	PN20
2 1/2″	175.5	98	21	78	59	NPT 2 1/2	PN20
3″	203	108	24.5	90	70	NPT 3	PN20
4″	240	126	28.5	102	85	NPT 4	PN20

Materials list

No.	Part name	Material
1	Body	Brass
2	Bonnet	Brass
3	Disc	Brass
4	Stem	Brass
5	Lock nut	Brass
6	Gland packing	PTFE
7	Gland	Brass
8	Packing nut	Brass
9	Nameplate	Aluminium
10	Nut	A107
11	Handwheel	Coated steel

Dimensions in millimetres. T is the connection thread; PN is the pressure rating. Temperature range −10 °C to 110 °C.

Brass swing check valve 1/2″ to 2″ — 6 sizes · 4-part materials list

Dimensions

Size	H	L	D	T	PN
1/2″	28	46	11.5	NPT 1/2	PN16
3/4″	35	54	16.5	NPT 3/4	PN16
1″	37.5	64	22	NPT 1	PN16
1 1/4″	45.5	75	29	NPT 1 1/4	PN16
1 1/2″	49.5	85	34	NPT 1 1/2	PN16
2″	59	104	45	NPT 2	PN16

Materials list

No.	Part name	Material
1	Body	Brass
2	Cap	Brass
3	Disc	Brass
4	Gasket	NBR

Dimensions in millimetres. T is the connection thread; PN is the pressure rating. Temperature range −10 °C to 110 °C.

Brass check valve 3/8″ to 4″ — 10 sizes · 6-part materials list

Dimensions

Size	A(mm)	B(mm)	C	Working pressure kg/cm2	Working pressure psl
3/8″	45	29.5	NPT 3/8	12	170
1/2″	47	33	NPT 1/2	12	170
3/4″	51	41.5	NPT 3/4	12	170
1″	56.5	47.5	NPT 1	12	170
11/4″	64	60	NPT 1 1/4	10	145
11/2″	69	68	NPT 1 1/2	10	145
2″	77	81	NPT 2	10	145
21/2″	88	104	NPT 2 1/2	8	110
3″	95.5	111	NPT 3	8	110
4″	103	141	NPT 4	8	110

Materials list

No.	Part code	Part name	Qty	Material
1	DS4102-08-001-A	Body	1	Brass
2	DS4102-08-042-A	Plate	1	Nylon
3	DS4102-08-007-A	Seal	1	NBR
4	DS4102-08-032-A	Plate	1	Nylon
5	DS4102-08-002-A	Bonnet	1	Brass
6	DS4102-10-072-A	Spring	1	Stainless steel

Dimensions A and B in millimetres. C is the connection thread.

Garden hose to male pipe, 45° angle 1/2″ to 3/4″ — 2 sizes · 10-part materials list

Dimensions

Size	H	W	L	T	PN
1/2″	49.5	53	26	NPT 1/2	PN16
3/4″	49.5	57	26	NPT 3/4	PN16

Materials list

No.	Part name	Material
1	Body	Brass
2	Packing nut	Brass
3	Stem	Brass
4	Gasket	NBR
5	Screw	Brass
6	Gasket	A107
7	Gland packing	PTFE
8	Handwheel	A126 CLASS8
9	Nameplate	Aluminium
10	Nut	Brass

Dimensions in millimetres. T is the connection thread; PN is the pressure rating. Temperature range −10 °C to 110 °C.

Need a valve that is not listed?

Specifications can be customised at your request.
