SC MFG. Group dba Hidalgo Metals Enterprise Ltd.
Facility

Manufacturing
and testing

Our production lines are in Mainland China, across a full range of divisional facilities. Every part is inspected in house before it leaves.

01

Manufacturing equipment

Production

Divisional facilities cover forming, stamping, forging and finishing, so a part can be taken from drawing to packed carton without leaving our own plants.

Tooling is built in house. That is what makes custom profiles, private-label runs and customer-branded parts practical at container volumes rather than a special case.

  • Cold drawing and cold rolling lines for pipe and tube
  • 1,500+ ton stamping press — size and gauge are not a constraint
  • Forging for flanges and rings, pressure ratings to class 2500
  • Butt-welding, casting and forging for pipe fittings to 64" OD
  • Powder coat, zinc plating and hot dip galvanizing
  • In-house tool and die making

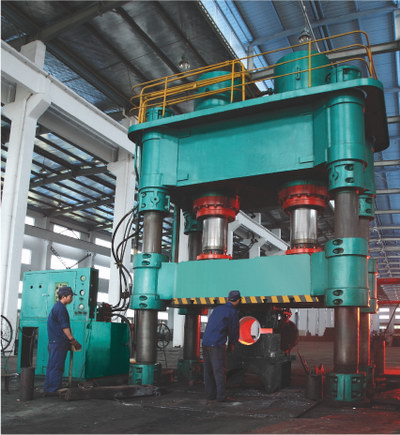

1,500-ton hot forming press on the shop floor.
1,500-ton hot forming press 01

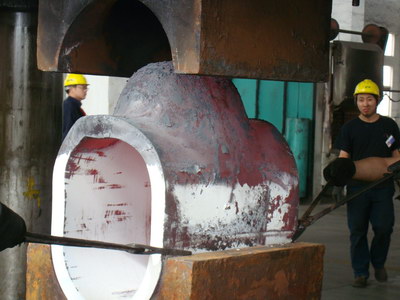

Hot forming a large butt-weld tee under the press.
Hot forming a butt-weld tee 02

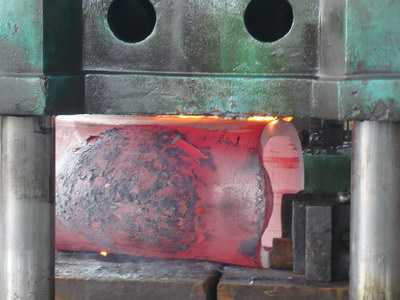

Red-hot workpiece in the forming die.
Heated shell in the die 03

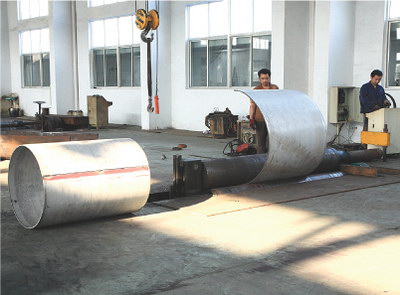

Plate rolling machine with rolled stainless shells.
Plate rolling machine 04

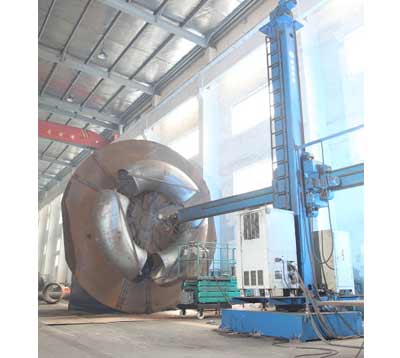

Column-and-boom automatic welding machine beside a large formed head.
Automatic welding machine 05

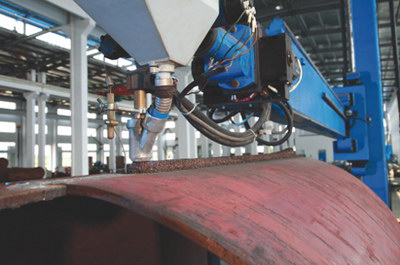

Automatic welding head running a seam on a rolled shell.
Automatic seam welding 06

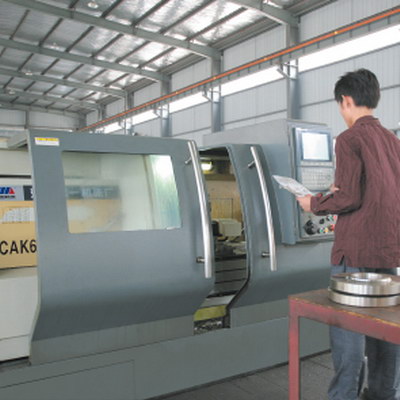

CNC lathe with operator checking the program.
CNC lathe 07

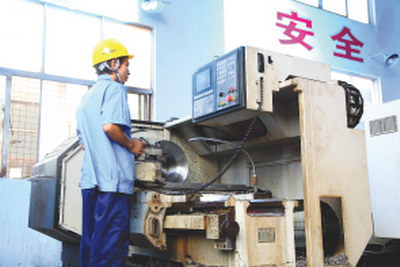

CNC machine with pendant control and operator.
CNC machine 08

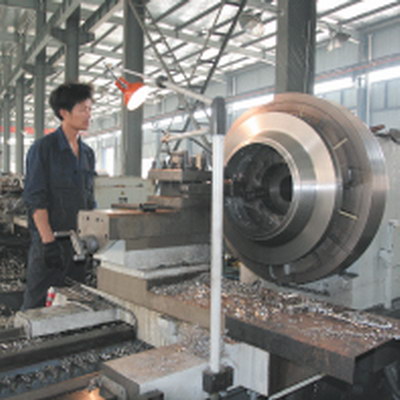

Heavy lathe turning a large flange.
General lathe 09

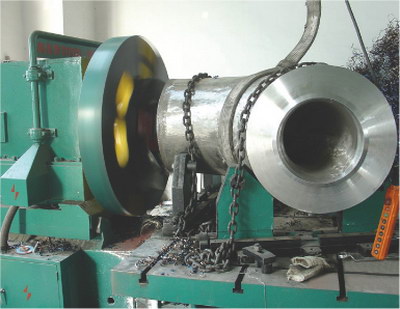

Automatic bevelling machine dressing a pipe end.
Auto bevel end machine 10
02

Inspection & testing equipment

Quality control

For our more demanding products we operate comprehensive testing facilities, with a matching quality management system. All products undergo in-house quality control before delivery, and our factories have acquired ISO 9001.

The total quality approach means our products conform to the highest international standards — ANSI/ASME, MSS, JIS, BS and DIN as the specification requires.

  • PMI — positive material identification
  • Eddy current testing
  • Ultrasonic testing
  • Dimensional and pressure verification
  • Permanent identification marking on flanges
  • Final inspection before packing and despatch
ISO 9001 ANSI / ASME MSS JIS BS DIN
Universal mechanical testing machine with control station.
Universal mechanical tester 01

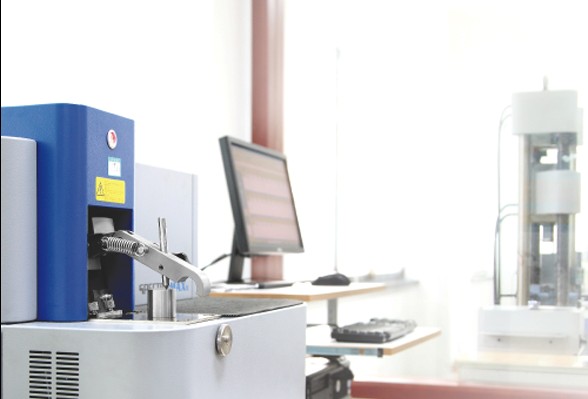

Stationary metal analyzer in the laboratory.
Stationary metal analyzer 02
Mobile metal analyzer testing a formed head.
Mobile metal analyzer 03
Portable alloy analyzer in use on a large fitting.
Portable alloy analyzer 04
Portable X-ray testing unit with control case.
X-ray tester 05

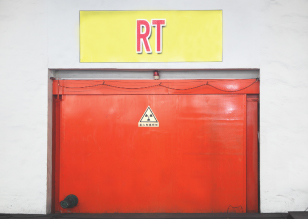

Shielded door of the X-ray inspection room.
X-ray inspection room 06
Impact testing machine behind its safety guards.
Impact testing machine 07
Technician at the Charpy V-notch projector.
Charpy V-notch projector 08
Brittleness temperature tester cabinets.
Brittleness temperature tester 09
Ultrasonic wall thickness measurement on a formed head.
Ultrasonic wall thickness 10
Digital micrometer measuring wall thickness.
Thickness measurement 11

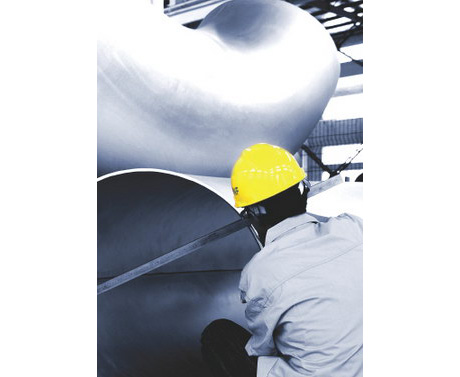

Checking the diameter of large butt-weld fittings.
Diameter measurement 12

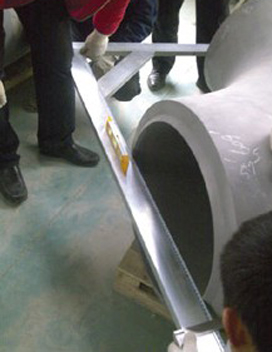

End-to-centre measurement on a large tee.
End-to-centre measurement 13
Caliper measuring a root face.
Root face measurement 14
Weld gauge checking a bevel angle.
Angle check 15
Analytical balance in its glass case.
Analytical balance 16
Wet chemistry bench with three-element analyser.
Three-element analyser 17
Equipment lists and test certificates for a specific product family are provided with quotations. Factory audit visits can be arranged through the Canada office.

How we work with distributors

Private label

Your brand, your packaging, produced to your spec.

Custom parts

Send a drawing or a sample and we will quote it.

Program supply

Container-volume programs, agreed pricing, scheduled shipments.

Samples

Available on request before any commitment.

Ask about a specific process

We will tell you what we run, and what we would not take on.
