| Class 150 Flange End Gate Valve |
• Rising stem
• Body: ASTM A351 Gr. CF8M
• Disc: ASTM A351 Gr. CF8M
• Stem: SS16
• End Type: Flange end
• Face to Face: ANSI B16.10
• Flange Dimensions: ANSI B16.5 150 lbs
• Wall thickness: ANSI B16.34
CLASS 150 FLANGE END
GATE VALVE
| DIMENSIONS |
| CODES |
SIZE |
L |
H1 |
K |
| inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
| 13FGAV05 |
1/2" |
15.0 |
4.25 |
108.0 |
8.03 |
204.0 |
3.94 |
100.0 |
| 13FGAV075 |
3/4" |
20.0 |
4.61 |
117.0 |
8.23 |
209.0 |
3.94 |
100.0 |
| 13FGAV1 |
1 |
25.0 |
5.00 |
127.0 |
9.02 |
229.0 |
3.94 |
100.0 |
| 13FGAV15 |
1 1/2" |
40.0 |
6.50 |
165.0 |
11.14 |
283.0 |
5.51 |
140.0 |
| 13FGAV2 |
2" |
50.0 |
7.01 |
178.0 |
13.07 |
332.0 |
6.30 |
160.0 |
| 13FGAV25 |
2 1/2" |
65.0 |
7.48 |
190.0 |
15.63 |
397.0 |
7.09 |
180.0 |
| 13FGAV3 |
3" |
80.0 |
7.99 |
203.0 |
17.28 |
439.0 |
7.87 |
200.0 |
| 13FGAV4 |
4" |
100.0 |
9.02 |
229.0 |
20.39 |
518.0 |
8.82 |
224.0 |
| 13FGAV5 |
5" |
125.0 |
10.00 |
254.0 |
24.45 |
621.0 |
9.84 |
250.0 |
| 13FGAV6 |
6" |
150.0 |
10.51 |
267.0 |
28.11 |
714.0 |
11.02 |
280.0 |
| 13FGAV8 |
8" |
200.0 |
11.50 |
292.0 |
35.98 |
914.0 |
11.81 |
300.0 |
| 13FGAV10 |
10" |
250.0 |
12.99 |
330.0 |
43.62 |
1108.0 |
13.98 |
355.0 |
| 13FGAV12 |
12" |
300.0 |
14.02 |
356.0 |
61.14 |
1553.0 |
23.62 |
600.0 |
| DIMENSIONS |
| CODES |
H |
F |
T |
M |
N |
Cv Factor |
Weight Lb |
| inch |
inch |
mm |
inch |
mm |
inch |
|
| 13FGAV05 |
2.38 |
1.38 |
35.0 |
0.44 |
11.1 |
0.62 |
4 |
19 |
7.28 |
| 13FGAV075 |
2.76 |
1.69 |
43.0 |
0.44 |
11.1 |
0.62 |
4 |
36 |
9.70 |
| 13FGAV1 |
3.13 |
2.01 |
51.0 |
0.44 |
11.1 |
0.62 |
4 |
57 |
11.31 |
| 13FGAV15 |
3.88 |
2.87 |
73.0 |
0.56 |
14.3 |
0.62 |
4 |
140 |
17.09 |
| 13FGAV2 |
4.74 |
3.62 |
92.0 |
0.63 |
15.9 |
0.75 |
4 |
240 |
25.09 |
| 13FGAV25 |
5.49 |
4.13 |
105.0 |
0.69 |
17.5 |
0.75 |
4 |
360 |
46.31 |
| 13FGAV3 |
6.00 |
5.00 |
127.0 |
0.75 |
19.1 |
0.75 |
4 |
580 |
56.56 |
| 13FGAV4 |
7.50 |
6.18 |
157.0 |
0.94 |
23.9 |
0.75 |
8 |
950 |
82.42 |
| 13FGAV5 |
8.52 |
7.32 |
186.0 |
0.94 |
23.9 |
0.88 |
8 |
NA |
110.25 |
| 13FGAV6 |
9.51 |
8.50 |
216.0 |
1.00 |
25.4 |
0.88 |
8 |
2400 |
119.07 |
| 13FGAV8 |
11.75 |
10.63 |
270.0 |
1.13 |
28.6 |
0.88 |
8 |
4200 |
198.45 |
| 13FGAV10 |
14.25 |
12.76 |
324.0 |
1.19 |
30.2 |
1.00 |
12 |
6800 |
343.98 |
| 13FGAV12 |
17.01 |
15.00 |
381.0 |
1.25 |
31.8 |
1.00 |
12 |
9900 |
534.71 |

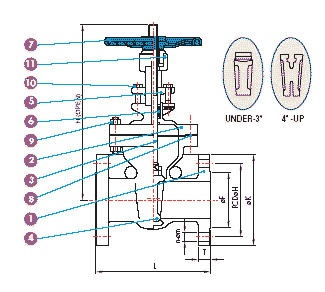

| MATERIALS LIST |
| NO. |
PART NAME |
MATERIAL SS316 |
QTY |
| 1 |
BODY |
ASTM A351 Gr. CF8M |
1 |
| 2 |
BONNET |
ASTM A351Gr.CF8M |
1 |
| 3 |
STEM |
ASTM A276Gr. 316 |
1 |
| 4 |
DISC |
ASTM A351 Gr. CF8M |
1 |
| 5 |
GLAND |
ASTM A351 Gr. CF8 |
1 |
| 6 |
GLAND PACKING |
PTFE |
1 |
| 7 |
HAND WHEEL |
ASTM A536 Gr. B65, 45 & 12 |
1 |
| 8 |
GASKET |
PTFE (OR NON ASBESTOS) |
1 |
| 9 |
BONNET BOLT/NUT |
ASTM A193 Gr. B8/ASTM A194 Gr. 8 |
4-16 |
| 10 |
GLAND BOLT/NUT |
ASTM A193 Gr. B8/ASTM A194 Gr. 8 |
2 |
| 11 |
YOKE SLEEVE |
BRONZE (OR DUCTILENI-RESIST) |
1 |
| Also available in Class 300 |
*SIZES SHOWN ARE APPROXIMATE AND MAY VARY |
|
|
|
