| 300 WOG Y Strainer Valve, Threaded, Socketweld |
• 300 WOG
• Investment cast body & cap
• SS316 screen. 4 mm thick perforated, 1.0 mm hole with 2.0 mm staggering
• Screwed-in cap
• Connecting threads: ANSI B2.1/BS21

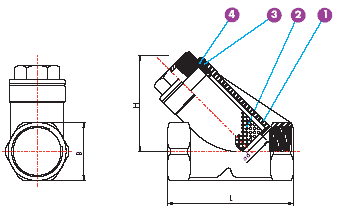

300 WOG Y STRAINER
THREADED, SOCKETWELD
| DIMENSIONS |
| CODES |
SIZE |
d |
B |
H |
L |
Weight |
| inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
Kg |
Lb |
| 13TYS025 |
1/4" |
8.0 |
0.31 |
8.0 |
1.02 |
26.0 |
2.01 |
51.0 |
2.56 |
65.0 |
0.26 |
0.57 |
| 13TYS0375 |
3/8" |
10.0 |
0.39 |
10.0 |
1.02 |
26.0 |
2.01 |
51.0 |
2.56 |
65.0 |
0.23 |
0.50 |
| 13TYS05 |
1/2" |
15.0 |
0.59 |
15.0 |
1.02 |
26.0 |
2.01 |
51.0 |
2.56 |
65.0 |
0.30 |
0.66 |
| 13TYS075 |
3/4" |
20.0 |
0.79 |
20.0 |
1.30 |
33.0 |
2.36 |
60.0 |
3.15 |
80.0 |
0.40 |
0.88 |
| 13TYS1 |
1" |
25.0 |
0.98 |
25.0 |
1.61 |
41.0 |
2.83 |
72.0 |
3.54 |
90.0 |
0.70 |
1.54 |
| 13TYS125 |
1 1/4" |
32.0 |
1.26 |
32.0 |
1.93 |
49.0 |
3.03 |
77.0 |
4.13 |
105.0 |
0.90 |
1.99 |
| 13TYS15 |
1 1/2" |
40.0 |
1.57 |
40.0 |
2.20 |
56.0 |
3.43 |
87.0 |
4.72 |
120.0 |
1.30 |
2.87 |
| 13TYS2 |
2" |
50.0 |
1.97 |
50.0 |
2.72 |
69.0 |
4.06 |
103.0 |
5.51 |
140.0 |
2.10 |
4.63 |
| 13TYS25 |
2 1/2" |
65.0 |
2.56 |
65.0 |
3.43 |
87.0 |
4.72 |
120.0 |
6.69 |
170.0 |
4.30 |
9.47 |
| 13TYS3 |
3" |
80.0 |
3.15 |
80.0 |
4.02 |
102.0 |
5.51 |
140.0 |
7.87 |
200.0 |
6.30 |
13.88 |
| MATERIALS LIST |
| NO. |
PART NAME |
MATERIAL |
QTY |
| 1 |
BODY |
ASTM A351 Gr. CF8M |
1 |
| 2 |
SCREEN |
SS316 SCREEN |
1 |
| 3 |
GASKET |
TEFLON |
1 |
| 4 |
CAP |
ASTM A351 Gr. CF8M |
1 |
*Sizes show are approximate and may vary |
|
|
|
