| 3 Way Reduced Port 1000 WOG Ball Valve, Threaded Ħ°TĦħ Port |
• Ħ°TĦħ Port
• Pressure rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Investment cast body & cap
• Bottom-loaded, Blow-out-proof stem
• Adjustable stem packing
• Actuator mounting pad
• Stainless Steel handle with vinyl grip
• Locking device
3 WAY REDUCED PORT
1000 WOG BALL VALVE, THREADED Ħ°TĦħ PORT

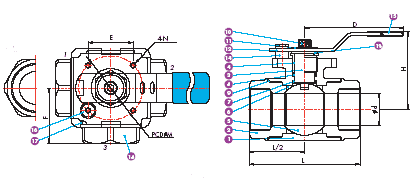

| DIMENSIONS |
| CODES |
SIZE |
D |
L |
H |
D |
E |
| inch |
mm |
inch |
mm |
inch |
mm |
inch |
inch |
inch |
mm |
| 13TBVT025 |
1/4" |
8.0 |
0.43 |
11.0 |
2.68 |
68.0 |
2.28 |
4.17 |
1.17 |
29.7 |
| 13TBVT0375 |
3/8" |
10.0 |
0.43 |
11.0 |
2.68 |
68.0 |
2.28 |
4.17 |
1.17 |
29.7 |
| 13TBVT05 |
1/2" |
15.0 |
0.50 |
12.7 |
2.95 |
75.0 |
2.40 |
5.43 |
1.17 |
29.7 |
| 13TBVT075 |
3/4" |
20.0 |
0.63 |
16.0 |
3.39 |
86.0 |
2.91 |
5.43 |
1.39 |
35.4 |
| 13TBVT1 |
1" |
25.0 |
0.79 |
20.0 |
4.06 |
103.0 |
3.19 |
6.38 |
1.39 |
35.4 |
| 13TBVT125 |
1 1/4" |
32.0 |
0.98 |
25.0 |
4.53 |
115.0 |
3.46 |
6.38 |
1.39 |
35.4 |
| 13TBVT15 |
1 1/2" |
40.0 |
1.26 |
32.0 |
4.92 |
125.0 |
4.09 |
8.66 |
1.95 |
49.5 |
| 13TBVT2 |
2" |
50.0 |
1.50 |
38.1 |
5.75 |
146.0 |
4.33 |
8.66 |
1.95 |
49.5 |
| DIMENSIONS |
| CODES |
F |
M |
N |
Cv Factor |
Weight Lb |
| inch |
mm |
inch |
mm |
|
| 13TBVT025 |
1.34 |
34.0 |
1.65 |
42.0 |
M5xP0.8 |
6.0 |
1.32 |
| 13TBVT0375 |
1.34 |
34.0 |
1.65 |
42.0 |
M5xP0.8 |
6.0 |
1.32 |
| 13TBVT05 |
1.48 |
37.5 |
1.65 |
42.0 |
M5xP0.8 |
12.0 |
1.47 |
| 13TBVT075 |
1.69 |
43.0 |
1.97 |
50.0 |
M6xP1.0 |
15.5 |
2.62 |
| 13TBVT1 |
2.03 |
51.5 |
1.97 |
50.0 |
M6xP1.0 |
20.0 |
3.75 |
| 13TBVT125 |
2.26 |
57.5 |
1.97 |
50.0 |
M6xP1.0 |
37.0 |
5.27 |
| 13TBVT15 |
2.46 |
62.5 |
2.76 |
70.0 |
M8xP1.25 |
103.0 |
7.50 |
| 13TBVT2 |
2.87 |
73.0 |
2.76 |
70.0 |
M8xP1.25 |
143.0 |
12.13 |
| MATERIALS LIST |
| NO. |
PART NAME |
MATERIAL |
QTY |
| 1 |
BODY |
ASTM A351 Gr. CF8M |
1 |
| 2 |
CAP2 |
ASTM A351 Gr. CF8M |
2 |
| 3 |
STEM |
ASTM A276 Gr. 316 |
1 |
| 4 |
GLAND NUT |
SS304 |
1 |
| 5 |
BALL |
ASTM A351 Gr. CF8M |
1 |
| 6 |
SEAT |
PTFE+15%G/F |
4 |
| 7 |
THRUST WASHER |
PTFE |
1 |
| 8 |
PACKINGS |
PTFE |
1 |
| 9 |
JOINT GASKET1 |
PTFE |
2 |
| 10 |
STEM BOLT |
SS304 |
1 |
| 11 |
WASHER |
SS304 |
1 |
| 12 |
HANDLE |
SS304 |
1 |
| 13 |
STEM WASHER |
SS304 |
1 |
| 14 |
SET SCREW |
SS304 |
1 |
| 15 |
HANDLE SLEEVE |
VINYL GRIP |
1 |
| 16 |
SET BOLT |
SS304 |
1 |
| 17 |
JOINT GASKET |
PTFE |
1 |
| 18 |
CAP1 |
ASTM A351 Gr. CF8M |
1 | *Sizes shown are approximate and may vary |
