| Full Port 200 WOG Globe Valve, Threaded |

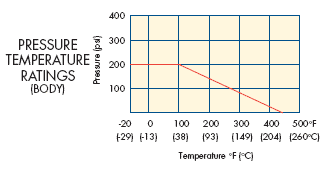

• Pressure rating: 200 PSI WOG (NON-SHOCK)
• Investment cast body & bonnet
• Screwed bonnet
• Rising stem and wheel
FULL PORT
200 WOG GLOBE VALVE, THREADED

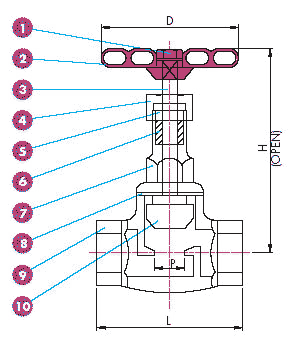

| DIMENSIONS |
| CODES |
SIZE |
P |
L |
H
(OPEN) |
D |
Cv Factor |
Weight Lb |
| inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
|
|
| 13TGLV025 |
1/4" |
8.0 |
0.39 |
10.0 |
2.05 |
52.0 |
4.02 |
102.0 |
2.36 |
60.0 |
1.0 |
1.04 |
| 13TGLV0375 |
3/8" |
10.0 |
0.47 |
12.0 |
2.05 |
52.0 |
4.02 |
102.0 |
2.36 |
60.0 |
1.5 |
1.01 |
| 13TGLV05 |
1/2" |
15.0 |
0.47 |
12.0 |
2.60 |
66.0 |
3.74 |
95.0 |
2.76 |
70.0 |
2.5 |
1.46 |
| 13TGLV075 |
3/4" |
20.0 |
0.59 |
15.0 |
2.70 |
68.5 |
3.90 |
99.0 |
2.76 |
70.0 |
5.6 |
1.46 |
| 13TGLV1 |
1" |
25.0 |
0.79 |
20.0 |
3.08 |
78.3 |
4.02 |
102.0 |
3.01 |
76.5 |
10.5 |
2.10 |
| 13TGLV125 |
1 1/4" |
32.0 |
0.98 |
25.0 |
3.39 |
86.0 |
4.96 |
126.0 |
4.07 |
103.5 |
17.0 |
3.11 |
| 13TGLV15 |
1 1/2" |
40.0 |
1.30 |
33.0 |
3.86 |
98.0 |
5.35 |
136.0 |
4.07 |
103.5 |
25.0 |
4.83 |
| 13TGLV2 |
2" |
50.0 |
1.57 |
40.0 |
4.35 |
110.5 |
6.14 |
156.0 |
4.76 |
121.0 |
46.0 |
6.09 |
| MATERIALS LIST |
| NO. |
PART NAME |
MATERIAL |
QTY |
| 1 |
NUT |
SS304 |
1 |
| 2 |
HANDWHEEL |
SS400 |
1 |
| 3 |
STEM |
ASTM A276 Gr. 316 |
1 |
| 4 |
GLAND NUT |
ASTM A351 Gr. CF8M |
1 |
| 5 |
GLAND |
ASTM A351 Gr. CF8M |
1 |
| 6 |
GLAND PACKING |
PTFE |
1 |
| 7 |
BONNET |
ASTM A351 Gr. CF8M |
1 |
| 8 |
GASKET |
PTFE |
1 |
| 9 |
BODY |
ASTM A351 Gr. CF8M |
1 |
| 10 |
DISC |
ASTM A351 Gr. CF8M |
1 |
*Sizes shown are approximate and may vary |
|
|
|
