| 1 PC Class 150 Regular Port Ball Valve, Flanged |
• 1 PC 150# Regular Port
• ISO 5211 actuator mounting pad
• Blow-out-proof stem design
• Anti-static device
• Adjustable stem packing
• Locking device
• Body: ASTM A351 Gr.CF8M for TC-6000
• ME-PTFE Seal Kits: Replaces PTFE, RPTFE and FPA
Low deformation under load
Low permeation

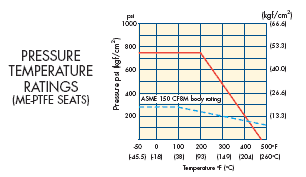

• Temperature rating: -45.5¡ãC (-50¡ãF) to 246¡ãC (475¡ãF)
• Long cycle life
• ANSI B16.5, B16.10 and B16.34 full compliance
• Test standard : API 598

1PC CLASS 150 REGULAR PORT
BALL VALVE, FLANGED
| DIMENSIONS |
| CODES |
SIZE |
A |
B |
E |
d |
G |
H |
K |
| inch |
mm |
inch |
inch |
inch |
inch |
mm |
inch |
inch |
inch |
| 13FVAI1 |
1" |
25.0 |
0.79 |
5.0 |
0.98 |
0.98 |
25.0 |
0.06 |
3.12 |
4.25 |
| 13FVAI15 |
1 1/2" |
40.0 |
1.26 |
6.5 |
1.24 |
1.57 |
40.0 |
0.06 |
3.88 |
5.00 |
| 13FVAI2 |
2" |
50.0 |
1.50 |
7.0 |
1.65 |
1.97 |
50.0 |
0.06 |
4.75 |
6.00 |
| 13FVAI25 |
2 1/2" |
65.0 |
1.97 |
7.5 |
1.65 |
2.64 |
67.0 |
0.06 |
5.50 |
7.00 |
| 13FVAI3 |
3" |
80.0 |
2.56 |
8.0 |
2.20 |
3.15 |
80.0 |
0.06 |
6.00 |
7.50 |
| 13FVAI4 |
4" |
100.0 |
3.15 |
9.0 |
2.20 |
3.94 |
100.0 |
0.06 |
7.50 |
9.00 |
| 13FVAI6 |
6" |
150.0 |
3.94 |
10.5 |
2.20 |
5.91 |
150.0 |
0.06 |
9.50 |
11.00 |
| - |
DIMENSIONS |
| CODES |
T |
M |
N |
P |
S |
L |
H1 |
h |
Cv Factor |
Weight LB |
| - |
inch |
inch |
- |
inch |
inch |
inch |
inch |
|
| 13FVAI1 |
0.44 |
0.62 |
4 |
1.65 |
0.43 |
5.18 |
2.95 |
M5xP0.8 |
52 |
5.07 |
| 13FVAI15 |
0.56 |
0.62 |
4 |
1.97 |
0.55 |
6.42 |
3.81 |
M6xP1.0 |
120 |
9.92 |
| 13FVAI2 |
0.62 |
0.75 |
4 |
2.76 |
0.67 |
9.13 |
4.96 |
M8xP1.25 |
170 |
15.66 |
| 13FVAI25 |
0.69 |
0.75 |
4 |
2.76 |
0.67 |
9.13 |
5.32 |
M8xP1.25 |
255 |
24.00 |
| 13FVAI3 |
0.75 |
0.75 |
4 |
4.02 |
0.87 |
12.87 |
5.98 |
M10xP1.5 |
430 |
31.31 |
| 13FVAI4 |
0.94 |
0.75 |
8 |
4.02 |
0.87 |
12.87 |
6.30 |
M10xP1.5 |
565 |
52.00 |
| 13FVAI6 |
1.00 |
0.88 |
8 |
4.02 |
0.87 |
12.87 |
7.01 |
M10xP1.5 |
600 |
78.06 |
| MATERIALS LIST |
| NO. |
PART NAME |
MATERIAL |
QTY |
| 1 |
BODY |
ASTM A351 Gr CF8M |
1 |
| 2 |
CAP |
ASTM A351 Gr CF8M |
1 |
| 3 |
BALL |
ASTM A351 Gr. CF8M |
1 |
| 4 |
STEM |
ASTM A276 Gr. 316 |
1 |
| 5 |
SEAT |
ME-PTFE* |
2 |
| 6 |
GASKET |
ME-PTFE* |
1 |
| 7 |
THRUST WASHER |
ME-PTFE* |
1 |
| 8 |
PACKING |
ME-PTFE* |
1 |
| 9 |
GLAND |
ASTM A351 Gr. CF8 |
1 |
| 10 |
STOPPER |
SS304 |
1 |
| 11 |
SNAP RING |
SS304 |
2 |
| 12 |
GLAND BOLT |
ASTM A193 Gr. B8 |
2 |
| 13 |
HANDLE |
ASTM A536 Gr.65, 45& 12 |
1 | *ME-PTFE IS MOLECULARLY ENHANCED PTFE
* SIZES SHOWN ARE APPROXIMATE AND MAY VARY |
