| 3 PC Full Port 1000 WOG Ball Valve, Buttweld |
• Pressure rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Investment cast body & cap
• Anti-static blow-out-proof stem
• Adjustable stem packing
• Stainless Steel handle with vinyl grip
3 PC FULL PORT
1000 WOG BALL VALVE, BUTTWELD

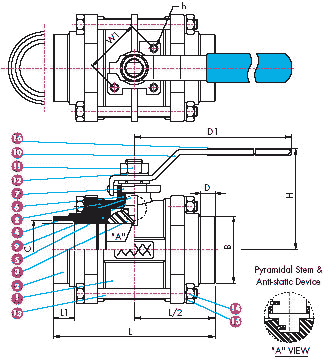

| DIMENSIONS |
| SIZE |
B |
C |
D |
L |
| inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
| 1/4" |
8.0 |
- |
- |
- |
- |
- |
- |
2.56 |
65.0 |
| 3/8" |
10.0 |
- |
- |
- |
- |
- |
- |
2.56 |
65.0 |
| 1/2" |
15.0 |
0.67 |
17.0 |
0.55 |
14.0 |
0.24 |
6.0 |
2.80 |
71.0 |
| 3/4" |
20.0 |
0.94 |
24.0 |
0.83 |
21.0 |
0.24 |
6.0 |
3.35 |
85.0 |
| 1" |
25.0 |
1.18 |
30.0 |
1.06 |
27.0 |
0.28 |
7.0 |
3.74 |
95.0 |
| 1 1/4" |
32.0 |
1.46 |
37.0 |
1.34 |
34.0 |
0.28 |
7.0 |
4.41 |
112.0 |
| 1 1/2" |
40.0 |
1.73 |
44.0 |
1.61 |
41.0 |
0.31 |
8.0 |
4.84 |
123.0 |
| 2" |
50.0 |
2.20 |
56.0 |
2.09 |
53.0 |
0.31 |
8.0 |
5.55 |
141.0 |
| 2 1/2" |
65.0 |
3.00 |
76.1 |
2.84 |
72.1 |
0.31 |
8.0 |
6.81 |
173.0 |
| 3" |
80.0 |
3.50 |
89.0 |
3.35 |
85.0 |
0.31 |
8.0 |
7.56 |
192.0 |
| 4" |
100.0 |
4.25 |
108.0 |
4.09 |
104.0 |
0.31 |
8.0 |
8.86 |
225.0 |
| - |
DIMENSIONS |
| Size |
L1 |
H |
D1 |
W1 |
h |
Cv Factor |
Weight Lb |
| inch |
inch |
mm |
inch |
inch |
mm |
inch |
mm |
| 1/4" |
- |
- |
4.02 |
4.02 |
102.0 |
1.42 |
36.0 |
M5xP0.8 |
6 |
1.06 |
| 3/8" |
- |
- |
4.02 |
4.02 |
102.0 |
1.42 |
36.0 |
M5xP0.8 |
12 |
1.01 |
| 1/2" |
0.35 |
9.0 |
4.02 |
4.02 |
102.0 |
1.42 |
36.0 |
M5xP0.8 |
19 |
1.28 |
| 3/4" |
0.35 |
9.0 |
4.96 |
4.96 |
126.0 |
1.42 |
36.0 |
M5xP0.8 |
37 |
2.02 |
| 1" |
0.41 |
10.5 |
4.96 |
4.96 |
126.0 |
1.42 |
36.0 |
M5xP0.8 |
64 |
2.62 |
| 1 1/4" |
0.41 |
10.5 |
5.91 |
5.91 |
150.0 |
1.97 |
50.0 |
M6xP1.0 |
103 |
4.57 |
| 1 1/2" |
0.47 |
12.0 |
5.91 |
5.91 |
150.0 |
1.97 |
50.0 |
M6xP1.0 |
143 |
6.06 |
| 2" |
0.47 |
12.0 |
7.32 |
7.32 |
186.0 |
1.97 |
50.0 |
M6xP1.0 |
360 |
8.98 |
| 2 1/2" |
0.47 |
12.0 |
10.71 |
10.71 |
272.0 |
2.76 |
70.0 |
M8xP1.25 |
440 |
17.9 |
| 3" |
0.47 |
12.0 |
10.71 |
10.71 |
272.0 |
4.02 |
102.0 |
M10xP1.5 |
520 |
28.03 |
| 4" |
0.47 |
12.0 |
13.19 |
13.19 |
335.0 |
4.02 |
102.0 |
M10xP1.5 |
820 |
46.57 |
| MATERIALS LIST |
| NO. |
PART NAME |
MATERIAL |
QTY |
| 1 |
BODY |
ASTM A351 Gr. CF8M |
1 |
| 2 |
CAP |
ASTM A351 Gr. CF8M |
2 |
| 3 |
BALL |
ASTM A351 Gr. CF8M |
1 |
| 4 |
STEM |
ASTM A276Gr. 316 |
1 |
| 5 |
SEAT |
PTFE |
2 |
| 6 |
PACKING |
GRAFOIL |
1 |
| 7 |
GLAND |
SS304 |
1 |
| 8 |
GASKET |
GRAFOIL |
2 |
| 9 |
THRUST WASHER |
PTFE |
1 |
| 10 |
HANDLE |
SS304 |
1 |
| 11 |
HANDLE NUT |
SS304 |
1 |
| 12 |
SPRING WASHER |
SS304 |
1 |
| 13 |
BOLTS |
ASTM A193 Gr. B8 |
4-6 |
| 14 |
BOLT NUTS |
ASTM A194 Gr. 8 |
4-6 |
| 15 |
BOLT WASHERS |
SS304 |
4-6 |
| 16 |
HANDLE SLEEVE |
VINYL GRIP |
1 |
* SIZES SHOWN ARE APPROXIMATE AND MAY VARY |
