| 1 PC Reduced Port 800 WOG Ball Valve, Threaded |
• Pressure rating: 800 PSI WOG (NON-SHOCK)
• Steam rating: 125 PSI WSP
• Investment cast body
• Bottom-loaded, Blow-out-proof stem
• Adjustable stem packing
• Stainless Steel handle with vinyl grip
• Locking device
1 PC REDUCED PORT
800 WOG BALL VALVE, THREADED

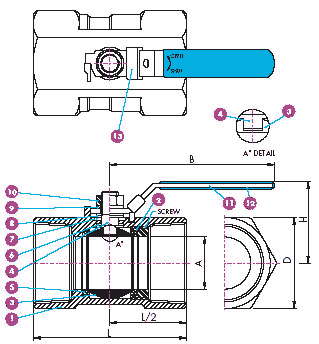

| DIMENSIONS |
| CODES |
SIZE |
A |
B |
D |
| inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
| 13TBV1025 |
1/4" |
8.0 |
0.20 |
5.0 |
2.36 |
60.0 |
0.67 |
17.0 |
| 13TBV10375 |
3/8" |
10.0 |
0.28 |
7.0 |
2.76 |
70.0 |
0.83 |
21.0 |
| 13TBV105 |
1/2" |
15.0 |
0.36 |
9.2 |
3.39 |
86.0 |
0.98 |
25.0 |
| 13TBV1075 |
3/4" |
20.0 |
0.49 |
12.5 |
3.39 |
86.0 |
1.26 |
32.0 |
| 13TBV11 |
1" |
25.0 |
0.63 |
16.0 |
4.09 |
104.0 |
1.50 |
38.0 |
| 13TBV1125 |
1 1/4" |
32.0 |
0.79 |
20.0 |
4.09 |
104.0 |
1.93 |
49.0 |
| 13TBV115 |
1 1/2" |
40.0 |
0.96 |
24.5 |
4.96 |
126.0 |
2.09 |
53.0 |
| 13TBV12 |
2" |
50.0 |
1.26 |
32.0 |
4.96 |
126.0 |
2.56 |
65.0 |
| DIMENSIONS |
| CODES |
L |
H |
Cv Factor |
Weight LB |
| inch |
mm |
inch |
mm |
| 13TBV1025 |
1.54 |
39.0 |
1.22 |
31.0 |
1.0 |
0.17 |
| 13TBV10375 |
1.73 |
44.0 |
1.38 |
35.0 |
2.5 |
0.24 |
| 13TBV105 |
2.22 |
56.0 |
1.69 |
43.0 |
5.5 |
0.38 |
| 13TBV1075 |
2.32 |
59.0 |
1.81 |
46.0 |
10.0 |
0.55 |
| 13TBV11 |
2.80 |
71.0 |
1.97 |
50.0 |
15.5 |
0.99 |
| 13TBV1125 |
3.11 |
79.0 |
2.13 |
54.0 |
20.0 |
1.63 |
| 13TBV115 |
3.27 |
83.0 |
2.56 |
65.0 |
37.0 |
1.83 |
| 13TBV12 |
3.94 |
100.0 |
2.83 |
72.0 |
60.0 |
2.76 |
| MATERIALS LIST |
| NO. |
PART NAME |
MATERIAL |
QTY |
| 1 |
BODY |
ASTM A351 Gr. CF8M |
1 |
| 2 |
CAP |
ASTM A351 Gr. CF8M |
1 |
| 3 |
BALL |
ASTM A351 Gr. CF8M |
1 |
| 4 |
STEM |
ASTM A276 Gr. 316 |
1 |
| 5 |
SEAT |
PTFE |
2 |
| 6 |
THRUST WASHER |
PTFE |
1 |
| 7 |
GLAND PACKING |
PTFE |
1 |
| 8 |
WASHER |
SS304 |
2 |
| 9 |
SPRING WASHER |
SS304 |
1 |
| 10 |
STEM NUT |
SS304 |
1 |
| 11 |
HANDLE |
SS304 |
1 |
| 12 |
HANDLE SLEEVE |
VINYL GRIP |
1 |
| 13 |
LOCKING PLATE |
SS304 |
1 |
* SIZES SHOWN ARE APPROXIMATE AND MAY VARY |
|
|
|
