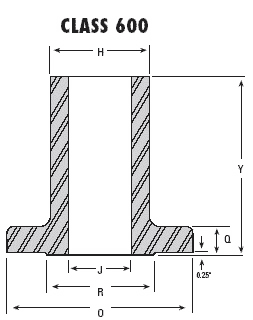

| Long Weld Neck - Class 600 |
NOMINAL
SIZE
AND BORE
J |
OUTSIDE
DIA.
O |
MINIMUM
FLANGE
THICKNESS
Q |
DIA. OF
RAISED
FACE
R |
MINIMUM
WALL
THICKNESS |
DIA. OF
HUB AT
POINT OF
WELDING
H |
LENGTH
THROUGH
HUB
Y |
| 0.5 |
3.75 |
0.56 |
1.38 |
0.50 |
1.50 |
9 |
| 0.75 |
4.62 |
0.62 |
1.69 |
0.56 |
1.88 |
9 |
| 1 |
4.88 |
0.69 |
2.00 |
0.56 |
2.12 |
9 |
| 1.25 |
5.25 |
0.81 |
2.50 |
0.62 |
2.50 |
9 |
| 1.5 |
6.12 |
0.88 |
2.88 |
0.62 |
2.75 |
9 |
| 2 |
6.50 |
1.00 |
3.62 |
0.62 |
3.25 |
9 |
| 2.5 |
7.50 |
1.12 |
4.12 |
0.72 |
3.94 |
9 |
| 3 |
8.25 |
1.25 |
5.00 |
0.81 |
4.62 |
9 |
| 3.5 |
9.00 |
1.38 |
5.50 |
0.88 |
5.25 |
9 |
| 4 |
10.75 |
1.50 |
6.19 |
1.00 |
6.00 |
12 |
| 5 |
13.00 |
1.75 |
7.31 |
1.25 |
7.50 |
12 |
| 6 |
14.00 |
1.88 |
8.50 |
1.38 |
8.75 |
12 |
| 8 |
16.50 |
2.19 |
10.62 |
1.38 |
10.75 |
12 |
| 10 |
20.00 |
2.50 |
12.75 |
1.75 |
13.50 |
12 |
| - |
DRILLING TEMPLATE |
APPROX.
WEIGHT
IN
POUNDS |
NOMINAL SIZE
AND BORE
J |
NO.
OF
HOLES |
DIA.
OF
HOLES |
DIA.
OF
BOLTS |
DIA.
BOLT
CIRCLE |
| 0.5 |
4 |
0.62 |
0.5 |
2.62 |
11 |
| 0.75 |
4 |
0.75 |
0.62 |
3.25 |
11 |
| 1 |
4 |
0.75 |
0.62 |
3.5 |
11 |
| 1.25 |
4 |
0.75 |
0.62 |
3.88 |
14 |
| 1.5 |
4 |
0.88 |
0.75 |
4.5 |
17 |
| 2 |
8 |
0.75 |
0.62 |
5 |
21 |
| 2.5 |
8 |
0.88 |
0.75 |
5.88 |
29 |
| 3 |
8 |
0.88 |
0.75 |
6.62 |
38 |
| 3.5 |
8 |
1 |
0.88 |
7.25 |
48 |
| 4 |
8 |
1 |
0.88 |
8.5 |
80 |
| 5 |
8 |
1.12 |
1 |
10.5 |
128 |
| 6 |
12 |
1.12 |
1 |
11.5 |
158 |
| 8 |
12 |
1.25 |
1.12 |
13.75 |
215 |
| 10 |
16 |
1.38 |
1.25 |
17 |
339 |
Necks are furnished machined all over.
Unless otherwise specified, Class 600 Seamless Long Weld Necks will be furnished drilled and with a 0.25¡± raised face
which is not included in thickness ¡°Q¡± but is included in Length ¡°Y¡±.
Long Weld Necks conform in every particular to the requirements of the latest API/ASME Code.
Other lengths available upon request.
LONG WELD NECK FLANGES ARE ALSO AVAILABLE IN
CLASSES 400, 900, 1500 & 2500.
|
